Starrett LSS 575MCP

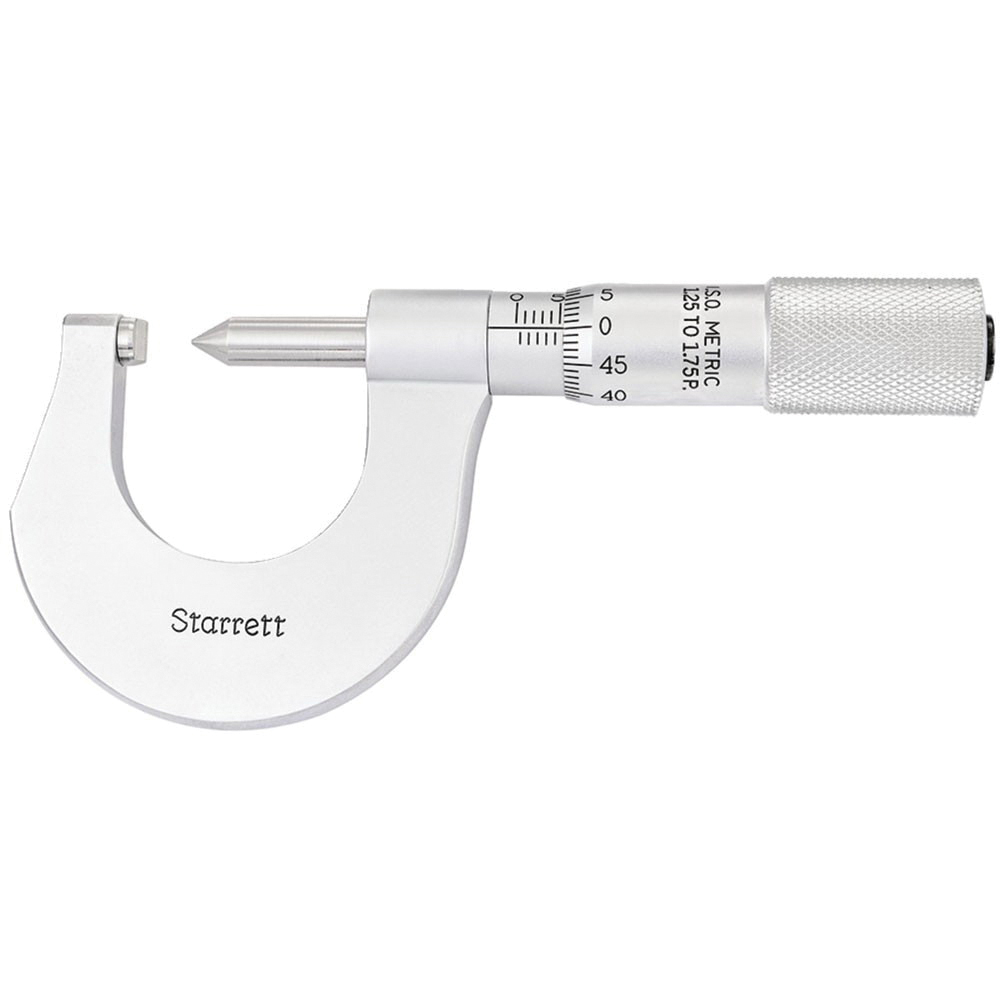

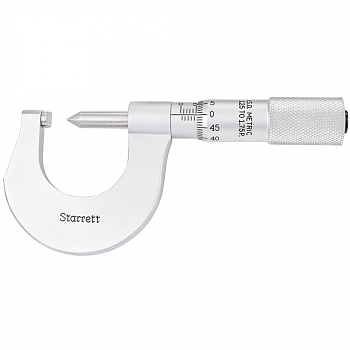

Starrett® 575MCP Mechanical Screw Thread Micrometer, 0.75 to 1 Threads/mm, Graduations: 0.01 mm, Steel, Satin Chrome
Factory Order
Starrett® Screw Thread Micrometer, Mechanical, Series: 575, 0.75 to 1 Threads/mm, +/-0.0002 in Accuracy, Graduations: 0.01 mm, 0.01 mm Resolution, Double V Anvil, Pointed Spindle, Plain Thimble, Steel, Satin Chrome
Features
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Balanced frame design for comfortable and accurate measuring
- Tapered frame for narrow slots and tight places
- Furnished with fixed, non-rotating anvil
- One-piece frame of drop forged steel
- Extremely hard and stable one-piece spindle
- Quick and easy adjustment
- Design allows 50% to 75% contact with the thread to be measured, insuring contact with the pitch diameter at all times
- 0 - 25 mm capacity pitch diameter
- Comes with a 25 mm standard at no extra cost
Specifications
ApplicationFor measuring I.S.O. metric and MJ screw threads
TypeMechanical
Series575
Measuring Range0.75 to 1 Threads/mm
Accuracy+/-0.0002 in
Graduations0.01 mm
Resolution0.01 mm
Anvil TypeDouble V
Spindle TypePointed
Thimble TypePlain
