Starrett LSS 567

Starrett 567, 7 Pieces, 1-5/16 in Capacity

Invoice description: 68 Series - V-blocks An D Clamps No. 56 V-bl

UPC: 049659525885
UNSPSC: 41111627
Manufacturer PN: 567
$712.14 EA
Factory Order
QTY:

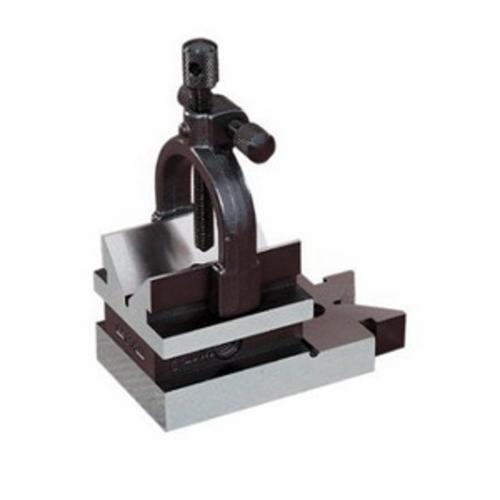

Starrett V-Block and Clamp Set, 7 Piece, 1-5/16 in Capacity

  • Features

  • The clamp is smaller than the outside width of the block, but has an adjustable side screw to support the block and prevent tilting
  • The V at the stepped end is at right angles to the base and is handy for holding shouldered studs, pins, etc
  • A clearance hole for drilling or removing dowel pins is provided in the block
  • The block has four 3/8-16 tapped holes
  • The block is hardened and precision ground
  • The clamp is a strong forging
  • Can be used on its base, on the end, or on either side
  • Used for general shop use and layout work, as well as for holding stock in place during light duty milling, drilling and grinding operations
  • All clamp screws have a hole to help secure the workpiece

Specifications

Number of Pieces7
Specifications1-5/16 in Capacity

Additional Information

IncludesV-Block, Clamp, Forg, 1/4-24 Clamp x 2-1/8 Long Screw, Cap With Screw, Cap, Side Screw, Screw and 1/4-24 Thumb x 1-3/8 Long Screw
Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
