Starrett LSS 505A-7

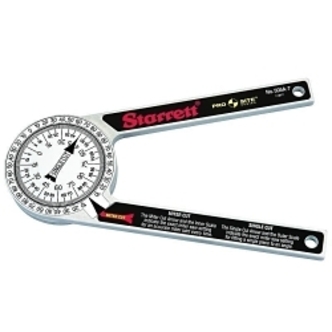

Starrett 505A-7 ProSite Combination Dial Reading Miter Protractor, 0 to 360 deg Measuring, 7 in L, Graduations 0 to 90 deg, Aluminum
Invoice description:
No. 505a, 7 & 12, Protractor/miter Gag
Factory Order
Starrett Miter Protractor, Combination Dial Reading, Series: ProSite 505, 0 to 360 deg, 7 in Length, +/-0.5 deg Accuracy, Graduations: 0 to 90 deg, Aluminum, Polished
Features
- Easy-to use tool has two laser engraved scales
- Miter cut scale transfers readings directly to the miter saw for miter joints
- Single cut scale transfers readings directly to the miter saw for butt joints
- Protractor saves time and reduces waste
- Made from durable 1/4 in aluminum for precise operation
Specifications
ApplicationFor carpenters, plumbers and all building trades
Accuracy+/-0.5 deg
FinishPolished
Graduations0 to 90 deg
Length7 in
MaterialAluminum
Measuring Range0 to 360 deg
SeriesProSite 505
TypeCombination Dial Reading
Additional Information
Includes(1) 06717-0 Top Leg, (1) 06705-0 Pivot Disc, (1) 06716-0 Label Set, (1) 06713-0 0.987 x 0.103 in Dia O-Ring, (1) Outside Miter Protractor Dial, (1) Inside Miter Protractor Dial, (1) 06714-0 1/4-20 x 7/16 L Fh Socket Cs Steel Black Screw, (1) 06718-0 Botto
Country of OriginUS
