Starrett LSS 491-18-4R

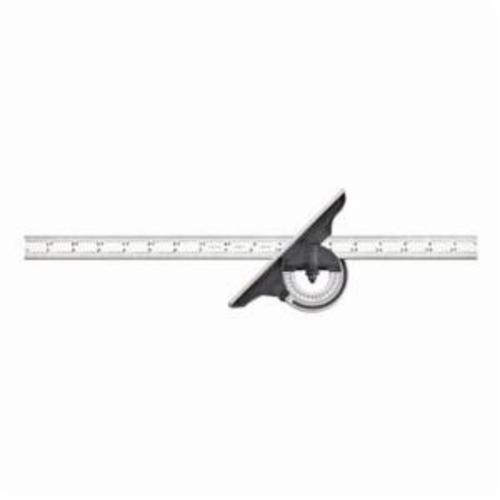

Starrett 491-18-4R Reversible Bevel Protractor, 0 to 180 deg Measuring, 7 in L, 18 in L x 1 in W x 3/32 in THK Blade, Graduations 4R - 8ths, 16ths, Quick-Reading, 32nds, 64ths, Cast Iron

Invoice description: 91 Series - Bevel Protra Ct Ors No. 49 18 4r

UPC: 049659525229

UNSPSC: 27111800

Manufacturer PN: 491-18-4R

^$416.14 EA

Factory Order

enlarge

Product Overview

Starrett Bevel Protractor, Reversible, Series: 491, 0 to 180 deg Measuring, 7 in Length, 18 in L x 1 in W x 3/32 in THK Blade, Graduations: 4R - 8ths, 16ths, Quick-Reading, 32nds, 64ths, Cast Iron, Black Wrinkle

Features
Direct reading 0 - 180 deg in opposite directions, permitting the direct reading of angles and supplementary angles
Protractor heads are made of stable cast iron and finished with a choice of attractive black wrinkle finish or smooth black finish
Tempered steel blades with accurate, machine-divided graduations
A spirit level indicates when the base reference surface is level - a feature not usually available on comparable protractors
Reversible lock bolt allows choice of which graduated side of the blade faces the operator
Reversible, there is a shoulder on both sides of blade, allowing the tool to be reversed so the same angle can be scribed or measured left and right
Regular finish blade
3-1/4 in H x 1-9/64 in W
