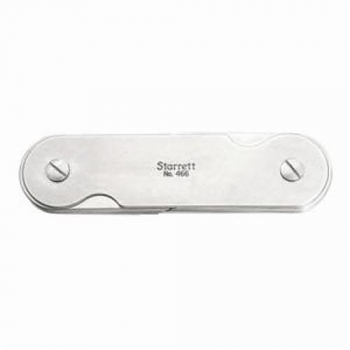

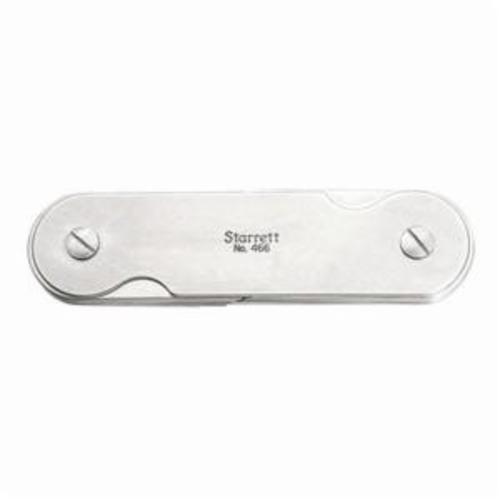

Starrett LSS 466

Starrett 466 Angle Gage, Graduations: 1 deg, 2 deg, 3 deg, 4 deg, 5 deg, 7 deg, 8 deg, 9 deg, 10 deg, 12 deg, 14 deg, 14-1/2 deg, 15 deg, 20 deg, 25 deg, 30 deg, 35 deg, 45 deg, 18 Leaves, Tempered Spring Steel

UPC: 049659524635
UNSPSC: 41111600
Manufacturer PN: 466
$328.90 EA
Factory Order
QTY:


Starrett Angle Gage, Graduations: 1 deg, 2 deg, 3 deg, 4 deg, 5 deg, 7 deg, 8 deg, 9 deg, 10 deg, 12 deg, 14 deg, 14-1/2 deg, 15 deg, 20 deg, 25 deg, 30 deg, 35 deg, 45 deg, 18 Leaves, Tempered Spring Steel, Plain

  • Features

  • Angle gage is a convenient, timesaving tool for inspectors, toolmakers and diesinkers when checking angles
  • This tool also replaces a protractor in many instances

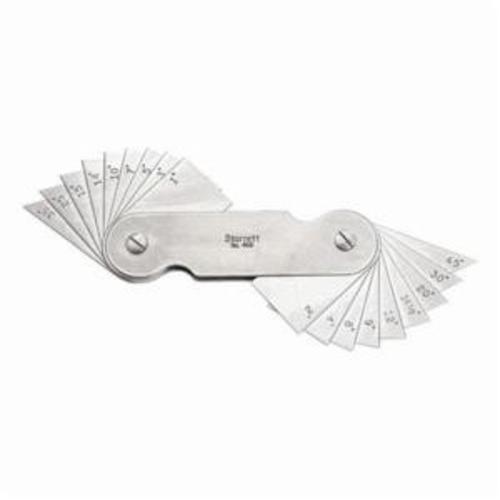

  • The gage has 18 leaves, each with a different angle including 14-1/2 deg (1/2 the Acme standard of 29 deg)
  • Leaves are made of the finest spring-tempered steel and both the angle edge and two sides are ground
  • 4-3/16 in L x 1-1/16 in W x 9/32 in THK

Specifications

FinishPlain
Graduations1 deg, 2 deg, 3 deg, 4 deg, 5 deg, 7 deg, 8 deg, 9 deg, 10 deg, 12 deg, 14 deg, 14-1/2 deg, 15 deg, 20 deg, 25 deg, 30 deg, 35 deg, 45 deg
MaterialTempered Spring Steel
Measuring Range1 to 45 deg
Number of Leaves18
