Starrett LSS 465MXSP-50

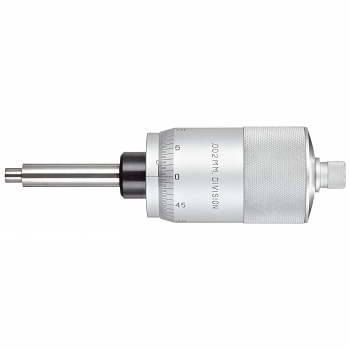

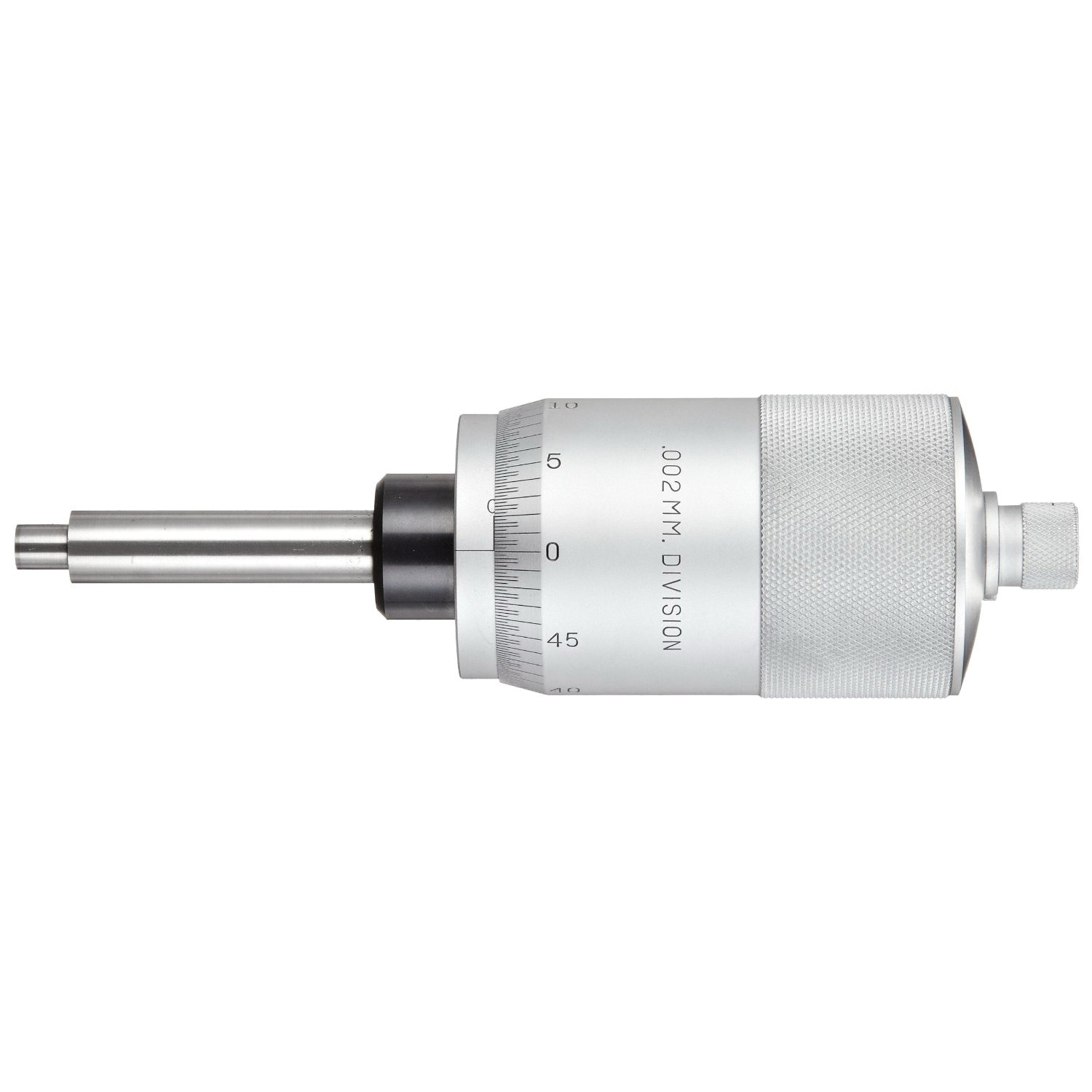

Starrett 465MXSP-50 Mechanical Micrometer Head, 0 to 50 mm, Graduations: 0.002 mm, Carbide Tip, Satin Chrome
Invoice description:
Direct Reading Large Mic Ro Meter Heads No. 4
Factory Order
Starrett Micrometer Head, Mechanical, Series: 465, 0 to 50 mm, +/-0.00125 mm/25 mm Accuracy, Graduations: 0.002 mm, 0.002 mm Resolution, Flat Spindle, 0.31 in Spindle Dia, Plain Thimble, Carbide Tip, Satin Chrome, 7-3/8 in L x 2-1/16 in W
Features
- Satin chrome finish, no-glare, resists rust on all reading surfaces
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Quick reading figures
- Extremely hard and stable one-piece spindle
- Micro-lapped measuring face for flatness and squareness
- Quick and easy adjustment
Specifications
Accuracy+/-0.00125 mm, 25 mm
Dimensions7-3/8 in L x 2-1/16 in W
FinishSatin Chrome
Graduations0.002 mm
MaterialCarbide Tip
Measuring Range0 to 50 mm
Resolution0.002 mm
Series465
Spindle Diameter0.31 in
Spindle TypeFlat
Thimble TypePlain
TypeMechanical
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
