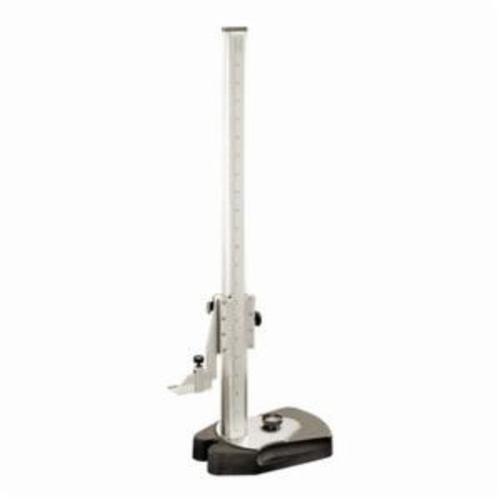

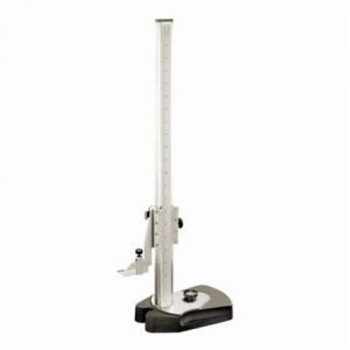

Starrett LSS 255M-300

Starrett Vernier Height Gage, Series: 255, 0 to 300 mm, Graduations: 0.02 mm, 113 mm Base Length, Steel, Satin Chrome, 16.906 in L x 2.28 in W

• Features

• Long, 50 division vernier scales that can be read to 0.001 or 0.02 mm without a magnifying glass
• Flush fitting of the vernier scales to the main scale eliminates parallax
• Easy reading sharp black lines and figures against Starrett satin chrome finish background
• The scriber and the base are designed so that the gage will read directly from zero
• Slides easily for quick adjustment and has a screw type adjusting nut on the bar for precise positioning
• The design of the hardened and stabilized bar plus the balanced design and weight of the base eliminate vibration
• The base is hardened, ground and lapped and is hand shaped for sure grip and easy movement
• The vertical bar is positioned near the center of the base for balance and stability
• Ability to scribe lines, measure with dial indicators or electronic probes and accept depth attachments
• The auxiliary scriber is a circular carbide scriber, cuts sharp, clean lines smoothly, rotatable for wear a Starrett original

Specifications

Documents

• Full Engineering Drawing
