Starrett LSS 252Z-24

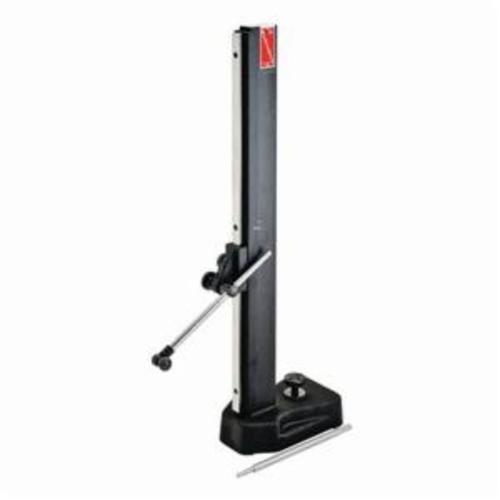

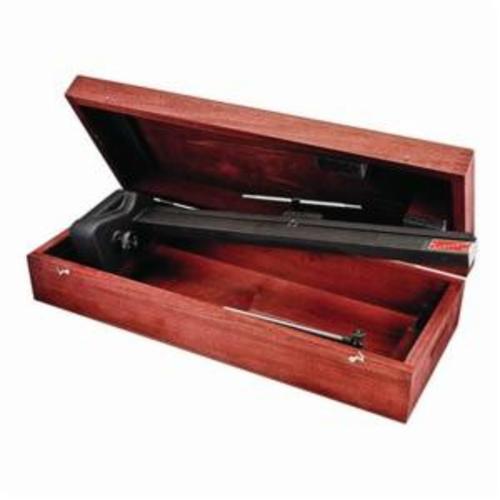

Starrett Height Transfer Gage, Series: 252, 0 to 24 in, 7-1/2 in Base Length, Steel, 26-1/64 in L x 4-1/2 in W x 7-1/2 in H

• Features

• Extreme rigidity provides the vibration proof stability necessary to permit precise, repeat readings with indicators of the highest amplification
• Extremely rigid, rectangular box-type hollow column mounted integrally on a heavy base
• Adjusting mechanism is located in the base so the column and indicator are isolated and not affected by external factors, heat or hand pressure
• Hand-fitting base design for sure grip handling and easy movement
• Bottom of the base has three ground and lapped pads for stability and smooth movement on the surface plate
• Adjustable slide, incorporating a snug for holding test indicators or electronic gage heads, has rapid vertical manual adjustment
• Thumb screw allows slide to be locked
• Knob on base allows fine vertical adjustment of the slide unit relative to the fixed column, this permits the slide with its test indicator to be quickly and precisely adjusted to the desired setting
• A snug on the slide provides two holes 3/8 in and 0.156 in for holding gage rods or scribers, a 9 in rod furnished with the gage is especially useful for reaching confined areas or reaching heights greater than the range of the gage
• The rod has a major diameter of 3/8 in and stepped diameters of 1/4 in and 7/32 in at one end and 5/16 in at the opposite end

Specifications

Documents

• Full Engineering Drawing
