Starrett LSS 254Z-24

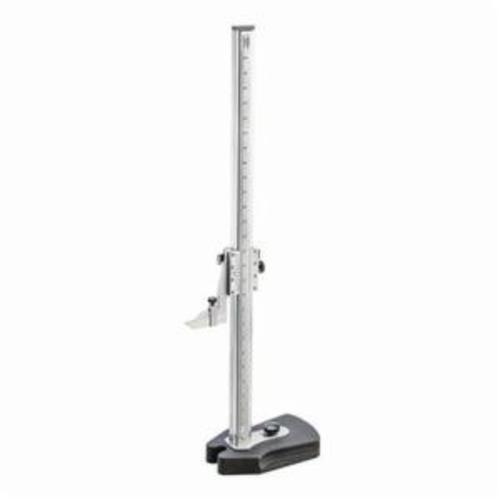

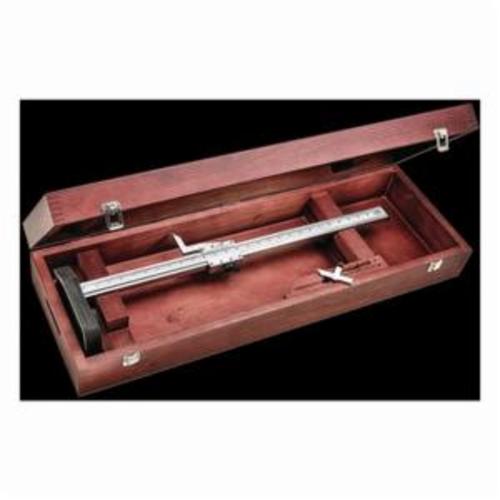

Starrett 254Z-24 Master Vernier Height Gage With Case, 0 to 24 in, 0.001 in, 7-1/2 in Base

Invoice description: Master Vernier Height Ga Ge S No. 254 254m 25

UPC: 049659512212

UNSPSC: 41111614

Manufacturer PN: 254Z-24

^$5,424.00 EA

Factory Order

enlarge

Product Overview

Starrett Master Vernier Height Gage, Series: 254, 0 to 24 in, Graduations: 0.001 in, 7-1/2 in Base Length, Steel, Satin Chrome, 29-25/32 in L x 4-19/32 in W x 9-21/32 in H

Features
50-division vernier scales permits half as many bar graduations as single vernier tools
These graduations provide easy reading to 0.003
Master bars on models up to 24 and 600mm are hardened and stabilized
Flush fitting of the vernier scales to the main scale eliminates parallax, vernier scales are adjustable
Scriber and base are designed for direct reading from zero (bottom of base)
Quick-adjust release on the slide allows for fast positioning
Extremely fine adjustments by a knob on the base isolating the column and slide from external pressures
Additional remote fine adjustment located on top of the bar for sizes 36 (900 mm) and larger
Special master bar design and the balanced design and weight of the base eliminates vibration
Base is hardened, ground and lapped square with the bar and has finger grooves to provide ease-of movement
