Starrett LSS 124MBZ

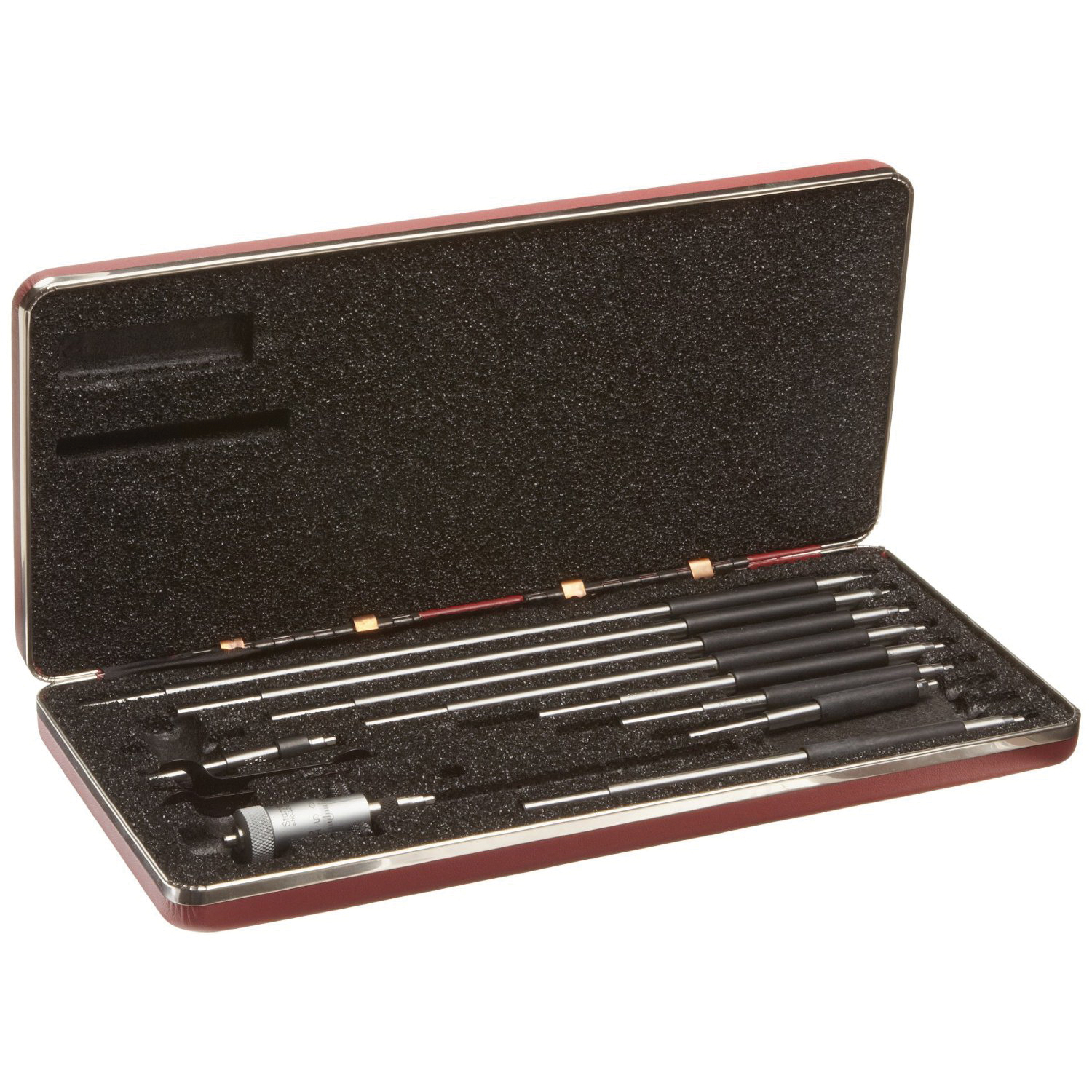

Starrett 124MBZ Solid Rod Inside Micrometer, 50 to 300 mm, Graduations: 0.01 mm
Invoice description:
Solid-rod Inside Microme Te Rs No.124 124m Se
Factory Order
Starrett Inside Micrometer, Solid Rod, Series: 124M, 50 to 300 mm, +/-0.003 mm/25 mm Accuracy, Graduations: 0.01 mm, 0.01 mm Resolution, Adjustable Anvil
Features
- Insulated rods marked with length
- Adjustable for length
- Measuring rods are solid
- Hardened and ground anvils on solid rods, for accuracy
- Quick reading figures
- Features a shoulder to set in the micrometer head that locks in position to ensure accuracy
- Lightweight for ease of use
- 6-1/2 in (165mm) long handle is available (124H)
- One 12 mm spacing collar
- 10 measuring rod
Specifications
ApplicationFor measuring inside diameters of cylinders and rings and measuring parallel surfaces
Accuracy+/-0.003/25 mm
Anvil TypeAdjustable
Graduations0.01 mm
Measuring Range50 to 300 mm
Resolution0.01 mm
Series124M
TypeSolid Rod
Additional Information
IncludesInside Micrometer Head Only, 0.375-52 Nut, #124MA B Metric Body, Short Handle, Lock X .186 Long Screw, Outside Metric Shell, 294-1/2 mm Spindle SCR, Shell Cap, Small Collar, 275-300 mm Rod With Anvil, 75-100 mm Rod With Anvil, 100-125 mm Rod With Anvil, 1
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
