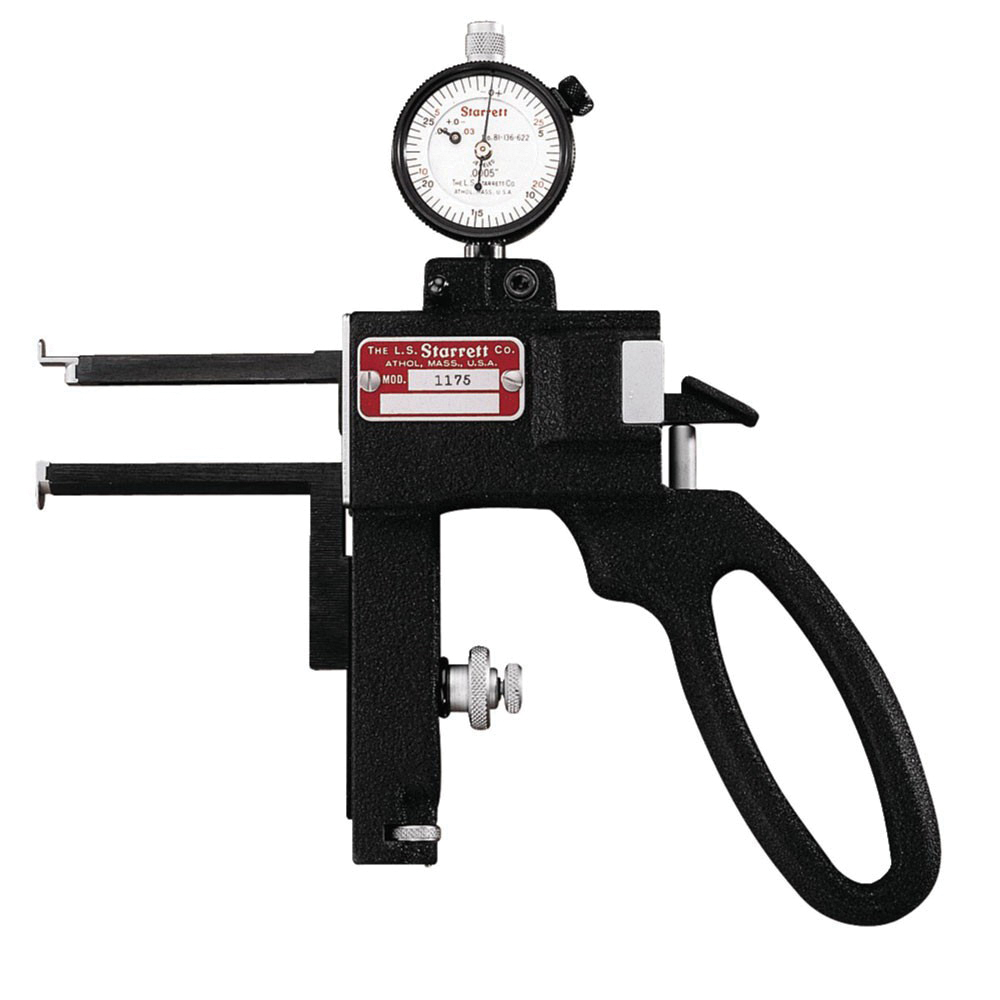

Starrett LSS 1175Z

Starrett Dial Indicator Groove Gage, Series: 1175, 3/8 to 6 in, Graduations: 0.0005 in, 0.0005 in Resolution, 0.1 in (Style 1-10), 0.14 in (Style 2-10), 0.265 in (Style 2-20) Groove Depth, 0.024 in (Style 1-10), 0.034 in (Style 2-10), 0.051 in (Style 2-20) Groove Width, Styles 1-10, 2-10, 2-20 Contact Point, White Dial

• Features

• The reference jaw can be mounted in two positions on the range adjusting bar
• The bar itself is also adjustable for greater or lesser range
• A fine adjustment screw and a lock are also provided
• Supplied with two sets of jaws, both readily interchangeable
• Three sets of contacts are furnished (styles 1-10, 2-10, 2-20) that can be attached to the ends of the jaws without replacing the entire jaw
• Contacts have flush ends so that grooves at the bottom of blind holes can be gaged
• Gage can be set with gage blocks or other methods such as micrometers, vernier calipers and ring gages
