Klein KLN S1656-60H

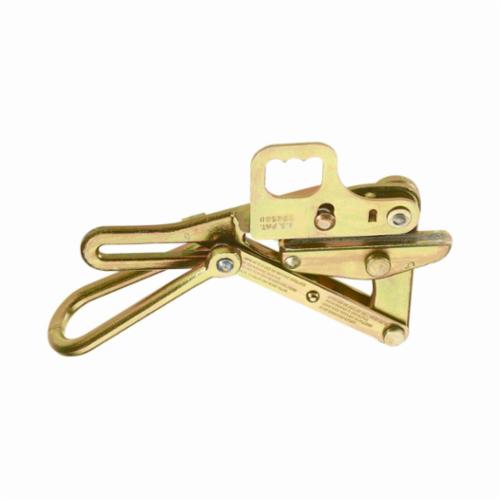

Klein Chicago S1656-60H Cable Pulling Grip, 477 to 636 kcmil Cable, 8000 lb Load, 5-1/2 in Jaw
Invoice description:
Chicago Grip, Forged, Ho T- 26 Line, .86-.96
Factory Order
Klein Chicago Cable Pulling Grip, 477 to 636 kcmil Cable, Load Rating: 8000 lb, 5-1/2 in Jaw Opening, Loop Handle Locking, 0.86 to 0.96 in Cable Dia, Steel
Features
- Hot-line grips for both bare and insulated conductors
- Grip may be placed on wire with hot line stick
- When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire
- Round, smooth inside jaw contour is ideal for bare ACSR
- Smooth jawed grips with maximum contact are less likely to cause cable deformation
- ACSR (Aluminum Conductor Steel Reinforced) wire or cable
- With 0.96 in latch capacity
Specifications
ApplicationIndustrial, Power Utility/Telecommunication Cable Pulling and Temporary Tensioning
Cable Diameter0.86 to 0.96 in
Cable Size477 to 636 kcmil
Jaw Opening5-1/2 in
Load Rating8000 lb
Locking TypeLoop Handle
MaterialSteel
Additional Information
IncludesSpring and Hot Line Latch
Country of OriginUS
