Brady BRA 51254

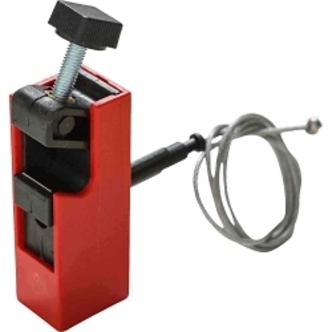

Brady 51254 EZ Panel Loc 1-Pole Clamp-On Electrical Risk Circuit Breaker Switch Lockout Device, For Use With 120/277 VAC 1-Pole Circuit Breaker with No Hole in Switch Tongue, 9/32 in Dia Max Padlock Shackle, Red
Invoice description:
Ez Panel Clamp On (univ) L Ockout 1 Pack
Factory Order
Brady Circuit Breaker Switch Lockout Device, 1-Pole Clamp-On Electrical Risk, Series: EZ Panel Loc, For Use With: 120/277 VAC 1-Pole Circuit Breaker with No Hole in Switch Tongue, 9/32 in Padlock Shackle Maximum Diameter, LOTO-45 Fiberglass Reinforced Polyurethane, Red, 2.56 in Height, 0.95 in Width, 0.74 in Depth
Features
- This breaker lockout is part of the EZ Paneloc lock rail system, which allows workers to secure lockout devices by passing a plastic key through an EZ Paneloc lock rail
- Padlocks, EZ Paneloc lock rails and other EZ Paneloc lockout devices sold separately
- EZ Paneloc lock rail system allows panel door to be closed when lockouts are in place and fits multiple locks, eliminating the need for group hasps
- For use on breakers that do not have a hole in the switch tongue, including multi-pole breakers with tie bars
- Turn thumbscrew to clamp lockout securely onto switch, then snap the cover closed to prevent thumbwheel from being loosened
- For use on breakers that do not have a hole in the switch tongue, including multi-pole breakers with tie bars
- Turn thumbscrew to clamp lockout securely onto switch, then snap the cover closed to prevent thumbwheel from being loosened
Specifications
ApplicationElectrical Risk Lockout Applications
ColorRed
Depth0.74 in
Height2.56 in
MaterialLOTO-45 Fiberglass Reinforced Polyurethane
Padlock Shackle Maximum Diameter9/32 in
SeriesEZ Panel Loc
Suitable For Use With120/277 VAC 1-Pole Circuit Breaker with No Hole in Switch Tongue
Type1-Pole Clamp-On Electrical Risk
Width0.95 in
Additional Information
Standards/ApprovalOSHA 1910.147
Country of OriginCN
Technical Bulletin
