Southwire COL 26020148-1

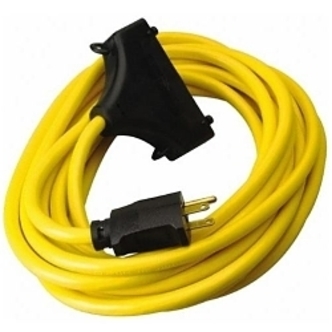

Southwire Surge Guard 26020148-1 Type SJTW-A GFCI In-line Tri-Cord Set, 120 VAC, 15 A, 12 AWG Conductor

Invoice description: Cord Ext 50' 12/3 Gfci T Rpl Ens

UPC: 024098907621
UNSPSC: 39121633
Manufacturer PN: 26020148-1
$111.40 EA
Factory Order
Estimated to ship in 7 days
QTY:


Southwire Surge Guard GFCI In-line Tri-Cord Set, Type SJTW-A, 120 VAC, 15 A, 50/60 Hz Frequency, 12 AWG Conductor, 3 Conductors, -35 to 66 deg C Operating, NEMA 5-15R Receptacle, NEMA 5-15P Plug, Yellow, 50 ft L x 2 in W Dimensions

  • Features

  • GFCI protected in-line tri-cord sets feature a heavy duty molded T-head with three receptacles
  • This GFCI cord set provides protection for the extra heavy duty cord and three attached tools
  • 12 gauge cord is ideal for outdoor rugged construction type environments
  • To prevent unmonitored equipment startup, manual reset is required after GFCI trip and power outage
  • Provides compliance with national electric code (NEC 2008) article 590.6 for temporary installations
  • 4 to 6 ma trip level
  • 4 Ohm typical grounded neutral
  • Less than 25 ms trip response time for ground fault and grounded neutral trip
  • 3 kV ringwave test and 4kv/2kA surge immunity test voltage surge withstand
  • Operates within normal limits with 0.5 volts injected on power line 150 kHz to 230 MHz radio frequency noise susceptibility

Specifications

ApplicationFor construction sites, portable electric power tools, saws and drills and multiple tools use
Amperage Rating15 A
ColorYellow
Conductor Size12 AWG
Dimensions50 ft L x 2 in W
Frequency Rating50/60 Hz
Number of Conductors3
Operating Temperature-35 to 66 deg C
Plug TypeNEMA 5-15P
Receptacle TypeNEMA 5-15R
TypeType SJTW-A
Voltage Rating120 VAC

Additional Information

Standards/ApprovalRoHS Compliant|UL Listed|CSA Certified|NEC 2008) Article 590.6 Compliant
Country of OriginUS
