Southwire COL 26020008-6

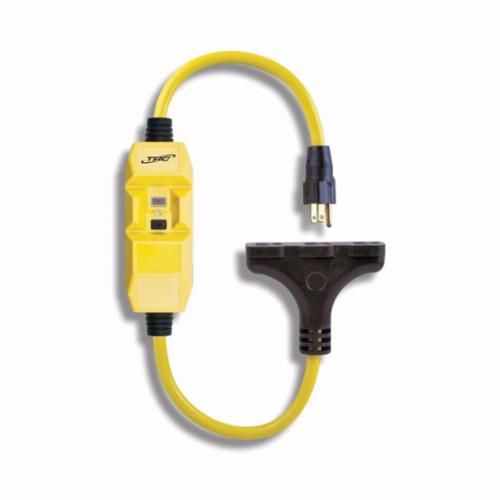

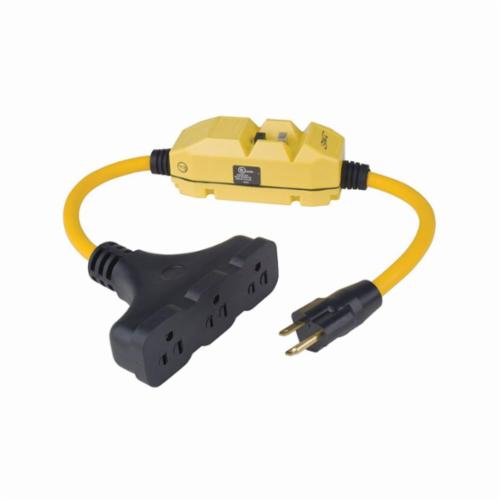

Southwire 26020008-6 In-Line Protected GFCI Tri-Cord, 120 VAC, 15 A, 1 Pole, 3 Wires, Yellow

Invoice description: Adapter 3-way Gfci 12/3 15amp/125v (g89-972)

UPC: 024098902145
UNSPSC: 39121633
Manufacturer PN: 26020008-6
$44.20 EA
In stock (54)
QTY:


Southwire GFCI Tri-Cord, In-Line Protected, 120 VAC, 15 A, 50/60 Hz, 1 Pole, 3 Wires, NEMA 5-15P/5-15R, Rainproof Enclosure, -35 to 66 deg C, Polymer, Yellow, 2 ft L x 4.75 in W x 1.89 in H

  • Features

  • In line sets feature a heavy duty molded T-head with three receptacles
  • To prevent unmonitored equipment startup, manual reset is required after GFCI trip and power outage
  • 4 to 6 ma trip level
  • 4 Ohm typical grounded neutral
  • Operates within normal limits with 0.5 volts injected on power line 150 kHz to 230 MHz
  • 3000 operations minimum endurance
  • Six times rated overload current
  • 5% maximum trip level variation
  • 1500 VRMS - 1 min insulation voltage
  • Lighted indicator power on indication

Specifications

ApplicationConstruction Sites, Portable Electric Power Tools, Multiple Tools, Saws and Drill Applications
Amperage Rating15 A
ColorYellow

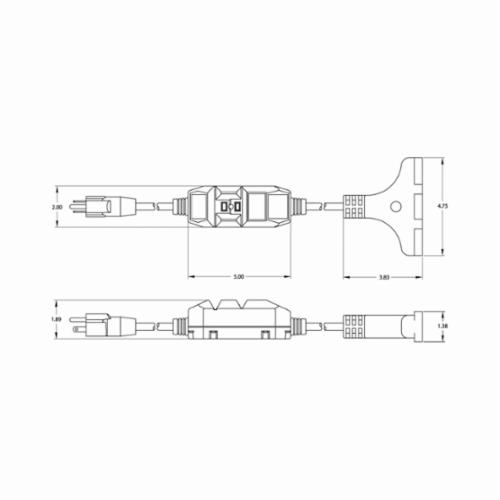

Dimensions2 ft L x 4.75 in W x 1.89 in H
EnclosureRainproof
Frequency Rating50/60 Hz
MaterialPolymer
NEMA RatingNEMA 5-15P/5-15R
Number of Poles1
Number of Wires3
Temperature Rating-35 to 66 deg C
TypeIn-Line Protected
Voltage Rating120 VAC

Additional Information

Standards/ApprovalRoHS Compliant|UL 943|CSA Certified
Country of OriginUS
