Coffing Hoists COFF LSB-12000B-10

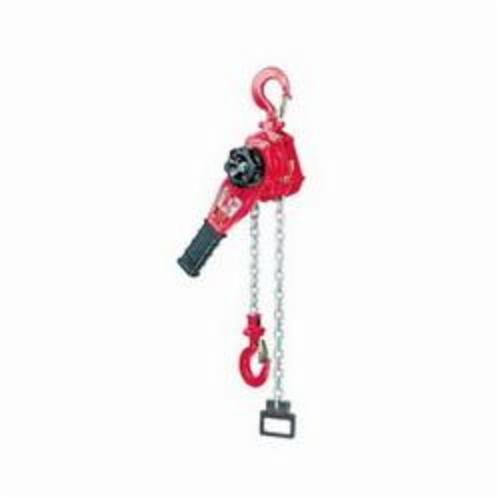

Coffing Hoists 09451W LSB-B Ratchet Lever Chain Hoist, 6 ton Load, 10 ft H Lifting, 76 lb Rated, 13 ft L Chain, 1-3/4 in Hook Opening

Invoice description: Hoist Lever 6 Ton 10'w/limiter

UPC: 698303321412

UNSPSC: 24101602

Manufacturer PN: 09451W

^$2,426.90 EA

Factory Order
Estimated to ship in 23 days

enlarge

Product Overview

Coffing Hoists Ratchet Lever Chain Hoist, Series: LSB-B, 6 ton Load, 10 ft Lifting Height, 22-3/4 in Minimum Between Hooks, 1-3/4 in Hook Opening, 76 lb Pull to Lift, 14-9/16 in Lever Length, 13 ft Chain Length, Hardened Steel Chain, 2 Reeving, Friction Brake, Cushion Grip/Short Handle

Features
Optional load limiter alerts operator of a possible overload by allowing the handle to rotate without lifting the higher than capacity load
The load limiter can be field-installed
Impact resistant, stamped steel housing withstands rigorous use
Compact design is portable and easy to rig
Double reduction gearing and short, cushioned grip handle provide easy operation with minimal handle effort
360 deg rotating handle provides versatile rigging options when used in confined spaces
State-of-the-art free wheeling mechanism allows quick and easy one-handed take-up and positioning of slack chain
Enclosed screw and disc type load brake stays clean and dry for positive load positioning
Latches on hooks provide positive load engagement
Options - shipyard hook available for 1-1/2 ton and 3 ton models
