Coffing Hoists COFF JLC-4008-1-15

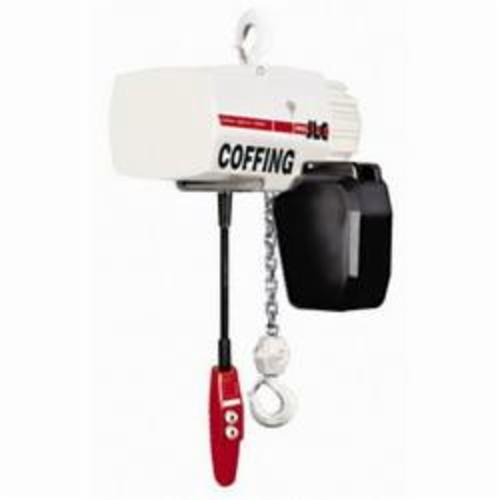

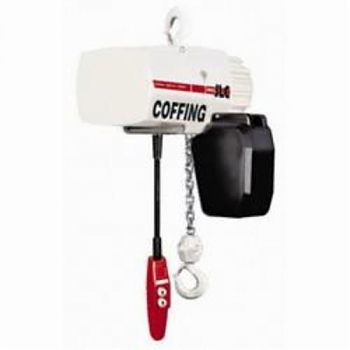

Coffing Hoists 08248W JLC Double Reeving Electric Chain Hoist With Chain Container, 2 ton Load, 15 ft Chain/Rope, 15 ft H Lifting, 1 hp Power Rating, 115 VAC
Invoice description:
Hoist 2 Ton 15' Lift
UPC: 698303510946
UNSPSC:
24101602
Manufacturer PN: 08248W
$6,424.12 EA
Factory OrderEstimated to ship in 11 days
Coffing Hoists Electric Chain Hoist, Double Reeving, Series: JLC, 2 ton, 15 ft, 15 ft Lifting Height, 16 fpm Lift Speed, 20-13/16 in Minimum Between Hooks, 1-Speed/NEMA 3R Pushbutton Station Control, Multiple Disc Motor Brake, 1 hp, 115 VAC, 8.5/17 A, 18-1/8 in Headroom, 112 lb, White, 8-11/16 in L x 8-11/16 in W x 24-1/8 in D
Features
- Limit switches adjustable to regulate upper and lower load travel
- Brass nuts standard for improved repeatability and chain positioning
- Precision machined alloy steel gears run in oil bath for longer, quieter operation
- Compact aluminum housing for portability and ease of installation
- Full line of accessories available, including variable frequency drives
- Two-speed hoist models optional with 3 to 1-speed ratio, three phase, single voltage only
Specifications
Amperage Rating8.5/17 A
Brake TypeMultiple Disc Motor
Chain/Rope Size15 ft
ColorWhite
Control Type1-Speed/NEMA 3R Pushbutton Station
Dimensions8-11/16 in L x 8-11/16 in W x 24-1/8 in D
Headroom18-1/8 in
Lift Speed16 fpm
Lifting Height15 ft
Load Capacity2 ton
Minimum Between Hooks20-13/16 in
Power Rating1 hp
SeriesJLC
TypeDouble Reeving
Voltage Rating115 VAC
Weight112 lb
Additional Information
Standards/ApprovalASME/ANSI B30.16|CSA Certified
Country of OriginUS
