YG-1 YG1 JAG97968

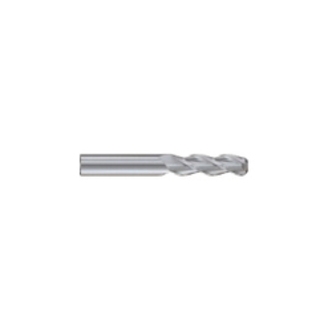

YG-1 JAG97968 ALU-POWER HPC JAG97 Center Cut Imperial Standard Length Corner Radius End Mill, 1/2 in Dia Cutter, 0.12 in Corner Radius, 1-1/4 in Length of Cut, 3 Flutes, 1/2 in Dia Shank, 3 in OAL, Super DLC Coated
Invoice description:
1/2 X 1/2 X 1-1/4 X 3 .1 20cr Carb Bull Nose
Factory Order
YG-1 Corner Radius End Mill, Center Cut Imperial Standard Length, Series: ALU-POWER HPC JAG97, 1/2 in Cutter Dia, 0.12 in Corner Radius, 3 in Overall Length, 1-1/4 in Length of Cut, 3 Flutes, Spiral Flute, 1/2 in Shank Dia, Right Hand Cutting, 37 deg Helix Angle, Plain Shank, Micrograin Carbide, Super DLC Coated
Specifications
Corner Radius0.12 in
Cutter Diameter1/2 in
Cutting DirectionRight Hand
FinishSuper DLC Coated
Flute TypeSpiral
Helix Angle37 deg
Length of Cut1-1/4 in
MaterialMicrograin Carbide
Number of Flutes3
Overall Length3 in
SeriesALU-POWER HPC JAG97
Shank Diameter1/2 in
Shank TypePlain
TypeCenter Cut Imperial Standard Length
