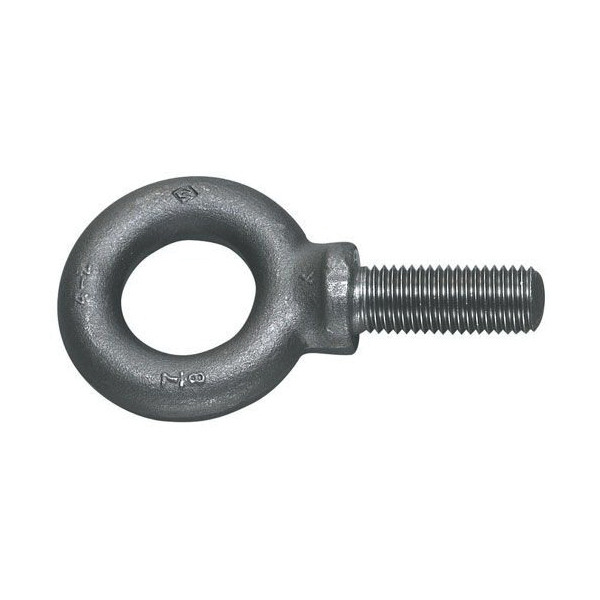

Williams WMS EB-29T

Williams Eye Bolt, Shoulder Pattern, Measurement System: Imperial, 7/8-9 Thread, 2-1/4 in Shank Length, Forged Carbon Steel, 1-5/8 in ID Eye, UNC Thread, 6 in Overall Length, 35000 lb Tensile Strength, 2A Grade

• Features

• Forged from the best quality carbon steel, hardened and tempered to ensure increased strength and toughness and reduce liability or breakage
• Each lot is tested and inspected to insure conformance to specifications
• Shoulder eye bolts must be properly seated (should bear firmly against the mating part) otherwise the working loads must be reduced substantially
• Eyebolt shanks should never be undercut or eyebolt shank diameters reduced
• A steel washer or spacer may be required for proper seating
• To obtain greatest strength from an eye bolt, it must fit reasonably tight in the hole into which it is screwed to prevent unscrewing due to twist of cable
• Tightness and seating must be checked after initial load

Specifications

Additional Information

Documents

• Warranty Information
