Wilton WILT 11754

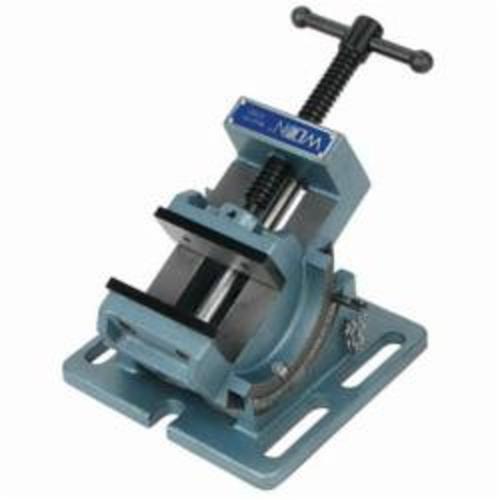

Wilton, WL9-11754, Drill Press Vise, Angle Cradle, 7-1/4 in Overall Length, 4-1/2 in Overall Height, V-Groove Jaw, 4 in Jaw Opening, 4 in Jaw Width, Steel Jaw, 1-1/2 in Throat Depth, 6-1/2 in Base Width, 6-1/2 in Base Length, Stationary Base, Cast Iron

• Features

• All boast hardened V-grooved jaws for clamping round objects vertically and horizontally
• Designed for applications including drilling, tapping and reaming requiring angle setup
• Cradle design with 90 deg vertical indexing, scaled in 1 deg increments
• Side tommy bar allows secure locking at any increment from 0 - 90 deg
• Pin hard stops at 0 deg, 15 deg, 30 deg, 45 deg, 60 deg, 75 deg and 90 deg for common applications
• Durable construction with fine grain cast iron castings and hardened smear vise jaws
• Black oxide coated screw provides consistent clamping pressure and durability
• Highly accurate with beds and bases parallel to plus/minus 0.001 in
• Base has four 1/2 in shoulder slots for quick, easy positioning on the machine table
• Cast iron is a heavy material that is malleable and extremely strong
