Wilton WARG 21804

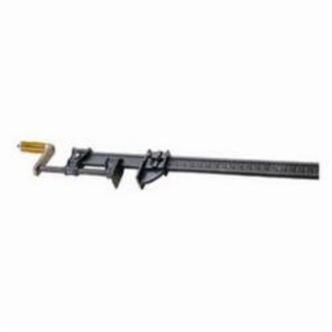

Wilton WL9-21804 Regular Duty I-Bar Clamp, 1-13/16 in D Throat, 48 in Jaw Opening

UPC: 019907218043
UNSPSC:
Manufacturer PN: WL9-21804
$129.78 EA
In stock (1)
QTY:


Wilton, WL9-21804, I-Bar Clamp, Regular Duty, 1-13/16 in Throat Depth, 48 in Jaw Opening, 5/8 in Screw, 5/8 in Spindle Diameter, 1-1/2 x 5/32 in Bar, 7/16 in Bar Thickness, Cast Iron Bar, 1-7/8 in Clamp Face, 6000 lb Clamping, 1-1/2 x 7/16 x 5/32 in Nominal Rail, Crank Handle, Steel/Wood Handle

  • Features

  • A rapid acting powerful clamp designed and constructed for hard, everyday production work
  • Quick-action, no-slip clutches are 3/4 in apart and formed in the web for greater bar strength
  • High strength ductile slide cannot slip or bind, easily released
  • Steel handle with comfortable wood crank for fast clamping

Specifications

ApplicationFor production work purpose
Bar MaterialCast Iron
Bar Size1-1/2 x 5/32 in
Bar Thickness7/16 in
Clamp Face1-7/8 in
Clamping Pressure6000 lb
Handle MaterialSteel/Wood
Handle TypeCrank
Jaw Opening48 in
Nominal Rail Size1-1/2 x 7/16 x 5/32 in
Screw Size5/8 in
Spindle Diameter5/8 in
Throat Depth1-13/16 in
TypeRegular Duty
