TECHNIKS TECN 22925

TECHNIKS 22925 Precision Regular Length Single End End Mill Holder, 1 in Dia Hole, Tapered Shank, CAT40 Taper, 2 in Dia Nose, 4 in Projection

UNSPSC: 27112809
Manufacturer PN: 22925
$135.38 EA
In stock (2)
QTY:

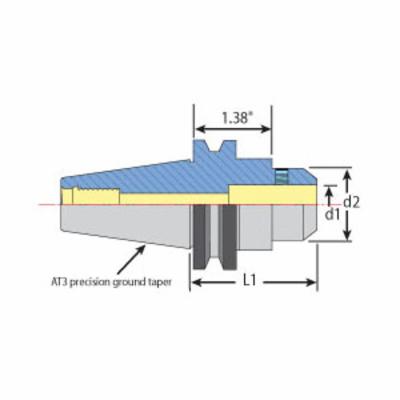

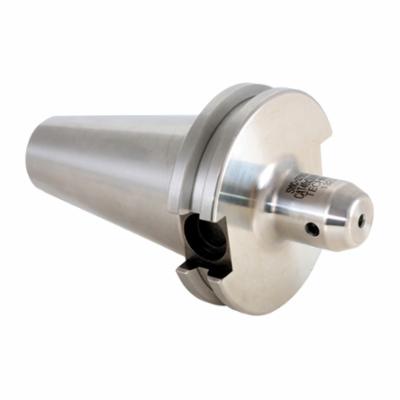

TECHNIKS End Mill Holder, Precision Regular Length Single End, 1 in Hole Dia, Tapered Shank, CAT40 Taper, 2 in Nose Dia, 4 in Projection, 6.69 in Overall Length

  • Features

  • TECHNIKS end mill holders are machined to H5 standard ID hole tolerance
  • Balanced to 15000 rpm at G6.3 tolerance to save spindle bearing life
  • Taper is ground to AT3 for maximum spindle contact
  • Lab certified with an individualized performance report
  • 70 ft-lb torque
  • 8620 Steel materia

Specifications

TypePrecision Regular Length Single End
Hole Diameter1 in
Shank TypeTapered
Taper SizeCAT40
Nose Diameter2 in
Projection4 in
Overall Length6.69 in
