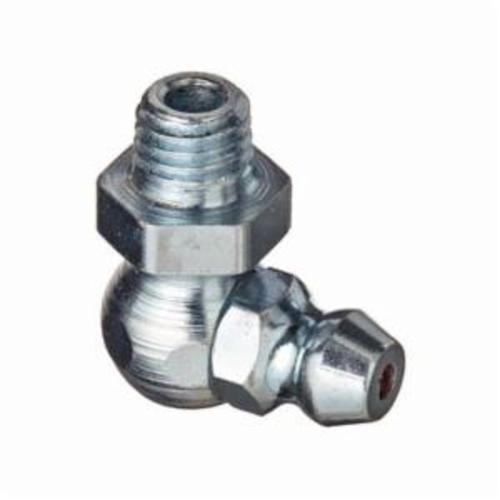

Alemite SWA 1911-B1
Alemite 1911-B1 90 deg Thread Forming Grease Fitting Zerk, 1/4-28 SAE-LT Male Taper Thread, 3/4 in OAL, 13/64 in L Shank, Steel, Trivalent Zinc Plated
Invoice description:
Hyd Ftg 90 1/4-28 Thd Sae Lt
UPC: 098468100523
UNSPSC:
40141736
Manufacturer PN: 1911-B1
$0.94 EA
Factory OrderEstimated to ship in 18 days
Alemite Grease Fitting Zerk, 90 deg Thread Forming, 1/4-28 SAE-LT Male Taper, 3/4 in Overall Length, 13/64 in Shank Length, 3/8 in Hex, Trivalent Zinc Plated, Steel
Features
- Exceeds 72 hr salt spray test
- Dirt-excluding check ball
- 10000 psi maximum
- Surface ball check
- It is recommended that SAE-LT taper threads be assembled into 1/4-28 UNF, class 3B, straight threaded holes having a modified maximum minor diameter of 0.2151 in, to ensure 75% minimum thread height
- Used where high volume of lubrication is required
- They are used for rugged automotive, agricultural and industrial machinery applications
Specifications
ApplicationFor used on most cars and trucks and many industrial machines
FinishTrivalent Zinc Plated
Hex Size3/8 in
MaterialSteel
Overall Length3/4 in
Shank Length13/64 in
Thread Size1/4-28 SAE-LT Male Taper
Type90 deg Thread Forming
Additional Information
Standards/ApprovalRoHS Compliant
Country of OriginUS
