Simpson Strong-Tie SIMS WA75614

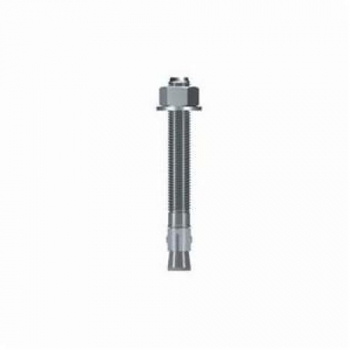

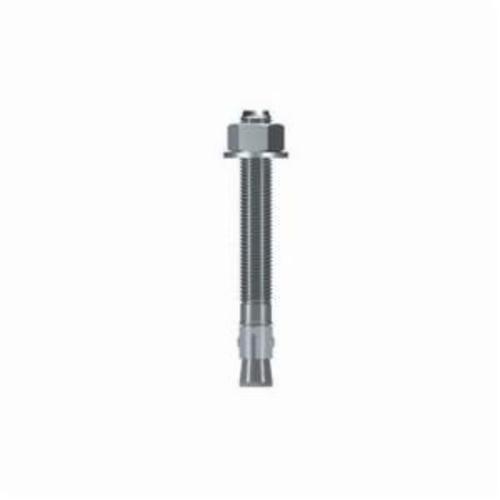

Simpson Strong-Tie Wedge Anchor, Series: Wedge-All, 3/4 in Dia, 6-1/4 in Overall Length, 4-3/8 in Thread Length, Carbon Steel, Zinc Plated, 3-3/8 in Minimum Embedment Depth, 3/4 in Drill, 1-1/8 in Head, 792 lb Shear Strength, 544 lb Tensile

• Features

• Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
• One-piece, wrap-around clip ensures uniform holding capacity
• Threaded end is chamfered for ease of starting nut
• Available in a wide range of diameters and lengths
• Carbon steel ASTM A563 grade A nut
• The minimum concrete thickness is 1-1/2 times the embedment depth
• The allowable loads are based on a safety factor of 4
• 7/8 in minimum fixture hole
• 150 ft-lb installation torque
• 6760 lb at 2000 psi, 9960 lb at 4000 psi ultimate tension loads and 1690 lb at 2000 psi, 2090 lb at 3000 psi, 2490 lb 4000 allowable tension load psi for concrete
