Simpson Strong-Tie SIMS WA50414

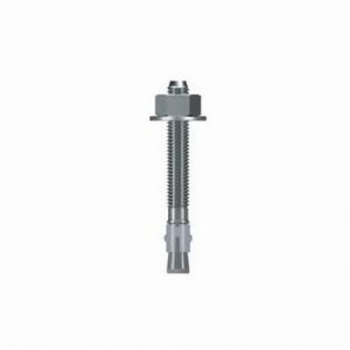

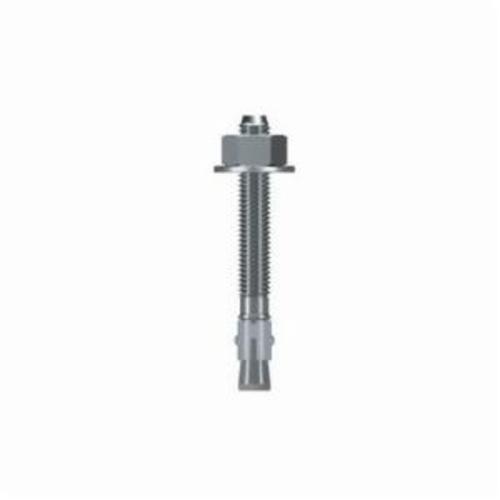

Simpson Strong-Tie WA50414 Wedge-All Wedge Anchor, 1/2 in Dia, 4-1/4 in OAL, 2-13/16 in L Thread, Carbon Steel, Zinc Plated
Invoice description:
Anchor Wedge 1/2"x4 1/4" 25/bx
In stock
(1)
Simpson Strong-Tie Wedge Anchor, Series: Wedge-All, 1/2 in Dia, 4-1/4 in Overall Length, 2-13/16 in Thread Length, Carbon Steel, Zinc Plated, 2-1/4 in Minimum Embedment Depth, 1/2 in Drill, 3/4 in Head, 850 lb Shear Strength, 871 lb Tensile
Features
- Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
- One-piece, wrap-around clip ensures uniform holding capacity
- Threaded end is chamfered for ease of starting nut
- Available in a wide range of diameters and lengths
- Carbon steel ASTM A563 grade A nut
- The minimum concrete thickness is 1-1/2 times the embedment depth
- The allowable loads are based on a safety factor of 4
- 9/16 in minimum fixture hole
- 60 ft-lb installation torque
- 3280 lb at 2000 psi/5280 lb at 4000 psi ultimate tension loads and 820 lb at 2000 psi, 1360 lb at 4000 allowable tension loads for concrete
Specifications
ApplicationFor interior environment, low level of corrosion resistance
Diameter1/2 in
Drill Size1/2 in
FinishZinc Plated
Head Size3/4 in
MaterialCarbon Steel
Minimum Embedment Depth2-1/4 in
Overall Length4-1/4 in
SeriesWedge-All
Shear Strength850 lb
Tensile Strength871 lb
Thread Length2-13/16 in
Additional Information
Standards/ApprovalFederal Specification A-A-1923A|Type 4|FM 3017082|3031136|3043442|Florida FL15730.8|UL File Ex3605
