Simpson Strong-Tie SIMS WA62500

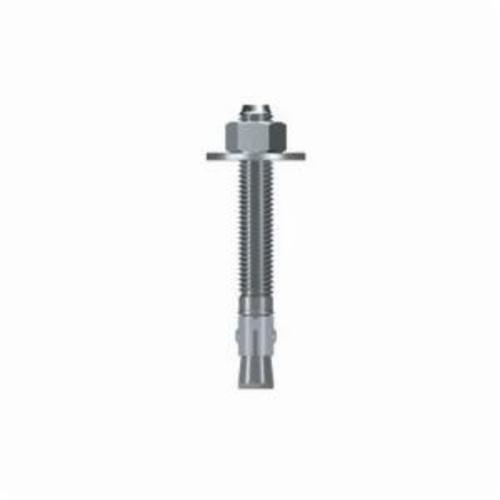

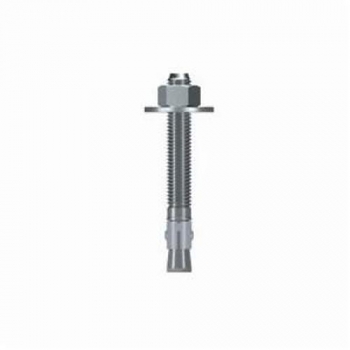

Simpson Strong-Tie WA62500 Wedge-All Wedge Anchor, 5/8 in Dia, 5 in OAL, 3-3/8 in L Thread, Carbon Steel, Zinc Plated

Invoice description: Anchor Wedge 5/8"x5" 20/bx

UPC: 044315327704
UNSPSC: 31162102
Manufacturer PN: WA62500
$37.12 BX
Factory Order
Estimated to ship in 7 days
QTY:


Simpson Strong-Tie Wedge Anchor, Series: Wedge-All, 5/8 in Dia, 5 in Overall Length, 3-3/8 in Thread Length, Carbon Steel, Zinc Plated, 2-3/4 in Minimum Embedment Depth, 5/8 in Drill, 15/16 in Head, 1699 lb Shear Strength, 120 lb Tensile

  • Features

  • Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
  • One-piece, wrap-around clip ensures uniform holding capacity
  • Threaded end is chamfered for ease of starting nut
  • Available in a wide range of diameters and lengths
  • Carbon steel ASTM A563 grade A nut
  • The minimum concrete thickness is 1-1/2 times the embedment depth
  • The allowable loads are based on a safety factor of 4
  • 11/16 in minimum fixture hole
  • 90 ft-lb installation torque
  • 4520 lb at 2000 psi/8600 lb at 4000 psi ultimate tension loads and 1130 lb at 2000 psi, 1640 lb at 3000 psi, 2150 lb at 4000 psi for concrete

Specifications

ApplicationFor interior environment, low level of corrosion resistance
Diameter5/8 in
Drill Size5/8 in
FinishZinc Plated
Head Size15/16 in
MaterialCarbon Steel
Minimum Embedment Depth2-3/4 in
Overall Length5 in
SeriesWedge-All
Shear Strength1699 lb
Tensile Strength120 lb
Thread Length3-3/8 in

Additional Information

Standards/ApprovalFederal Specification A-A-1923A|Type 4|FM 3017082|3031136|3043442|Florida FL15730.8|UL File Ex3605
