SGS SGS 91025

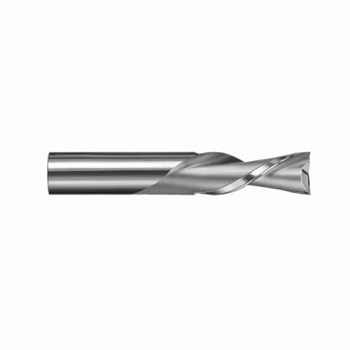

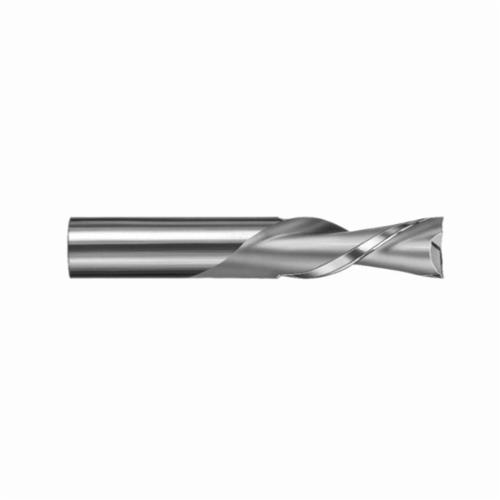

SGS 91025 22S Regular Length Single End Router Bit, 5/16 in Dia Cutting, Square End, 3 in OAL, 1 in D Cutting, 1/2 in Dia Shank, Micrograin Solid Carbide

UPC: 691781910253
UNSPSC: 27112821
Manufacturer PN: 91025
$95.60 EA
Factory Order
Estimated to ship in 7 days
QTY:


SGS Router Bit, Regular Length Single End, Series: 22S, 5/16 in Cutting Dia, Square, 3 in Overall Length, 1 in Cutting Depth, Downcut Left Spiral Flute, 2 Flutes, 1 in Flute Length, Straight Shank, 1/2 in Shank Dia, 2 in Shank Length, 35 deg Helix Angle, Micrograin Solid Carbide, Uncoated

Specifications

ApplicationAerospace, Medical, Power Generation, Automotive and General Engineering
Cutting Depth1 in
Cutting Diameter5/16 in
End TypeSquare
FinishUncoated
Flute Length1 in
Flute TypeDowncut Left Spiral
Helix Angle35 deg
MaterialMicrograin Solid Carbide
Number of Flutes2
Overall Length3 in
Series22S
Shank Diameter1/2 in
Shank Length2 in
Shank TypeStraight
TypeRegular Length Single End
