SGS SGS 38019

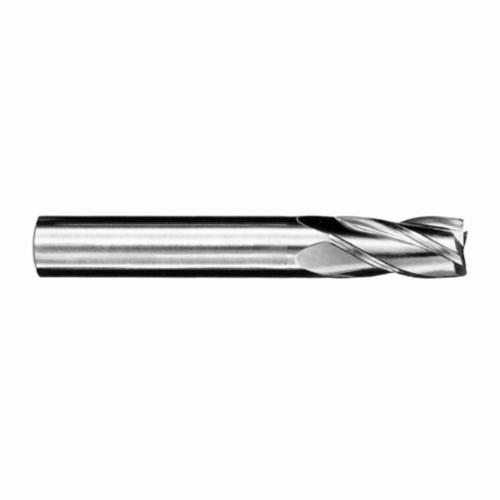

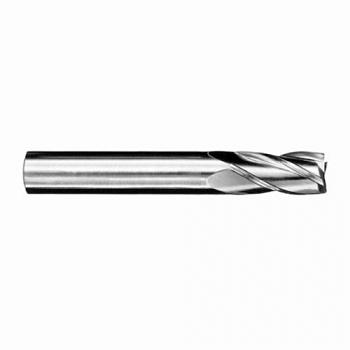

SGS 38019 1CR Center Cutting Positive Rake Regular Length Single End End Mill, 1/4 in Dia Cutter, 0.015 in Corner Radius, 3/4 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, Uncoated
Invoice description:
End Mill 1/4 Corner Radi Us 4fl Solid Carbide 01c
UPC: 691781380193
UNSPSC:
27112803
Manufacturer PN: 38019
$31.34 EA
Factory OrderEstimated to ship in 7 days
SGS End Mill, Center Cutting Positive Rake Regular Length Single End, Series: 1CR, 1/4 in Diameter Cutter, 0.015 in Corner Radius, 2-1/2 in Overall Length, 3/4 in Length of Cut, 4 Flutes, Right Spiral Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight Shank, 1-3/4 in Shank Length, Solid Carbide, Uncoated
Specifications
ApplicationAerospace, Medical, Power Generation, Automotive, Castings, Foundries, General Engineering, Mold and Die
Corner Radius0.015 in
Cutter Diameter1/4 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeRight Spiral
Helix Angle30 deg
Length of Cut3/4 in
MaterialSolid Carbide
Number of Flutes4
Overall Length2-1/2 in
Series1CR
Shank Diameter1/4 in
Shank Length1-3/4 in
Shank TypeStraight
TypeCenter Cutting Positive Rake Regular Length Single End
Additional Information
Country of OriginUS
Sds
Rohs
