SGS SGS 36462

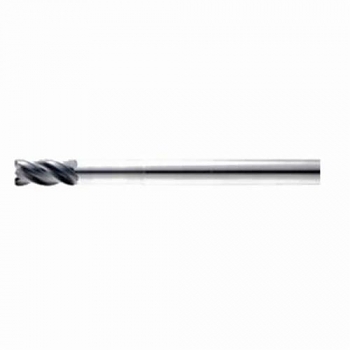

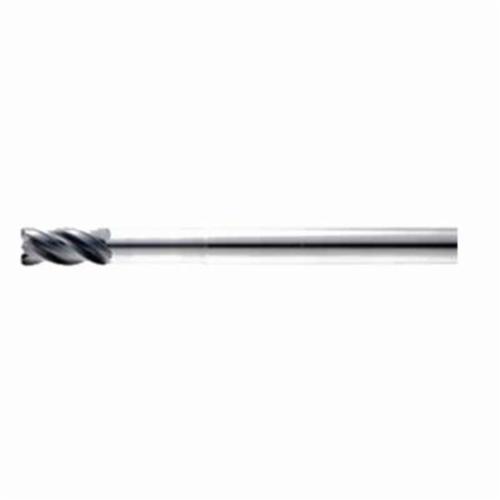

SGS 36462 Z-Carb-AP Z1PLC Center Cutting High Performance Long Reach Neck Single End Variable Rake End Mill, 1/2 in Dia Cutter, 0.03 in Corner Radius, 1 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 6 in OAL, TX Coated

Invoice description: Ser Z1lc 1/2 Ti-a Long R Ea Ch

UPC: 691781364629
UNSPSC: 27112803
Manufacturer PN: 36462
$160.06 EA
Factory Order
Estimated to ship in 7 days
QTY:


SGS End Mill, Center Cutting High Performance Long Reach Neck Single End Variable Rake, Series: Z-Carb-AP Z1PLC, 1/2 in Cutter Dia, 0.03 in Corner Radius, 6 in Overall Length, 1 in Length of Cut, 4 Flutes, Right Spiral Flute, 1/2 in Shank Dia, Right Hand Cutting, 35 to 38 deg Helix Angle, Straight Shank, 3-3/4 in Shank Length, Solid Carbide, TX Coated

  • Features

  • Variable rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level
  • Unequal helix design changes the cutting angle to improve harmonics
  • Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
  • Long reach design allows for deeper and faster cuts
  • Enhanced corner geometry with tight tolerance corner radii
  • Recommended for materials

Specifications

ApplicationAerospace, Medical, Power Generation, Automotive, Castings, Foundries, General Engineering, Mold and Die
Corner Radius0.03 in
Cutter Diameter1/2 in
Cutting DirectionRight Hand
FinishTX Coated
Flute TypeRight Spiral
Helix Angle35 to 38 deg
Length of Cut1 in
MaterialSolid Carbide
Number of Flutes4
Overall Length6 in
SeriesZ-Carb-AP Z1PLC
Shank Diameter1/2 in
Shank Length3-3/4 in
Shank TypeStraight
TypeCenter Cutting High Performance Long Reach Neck Single End Variable Rake

Additional Information

Country of OriginUS
