Sandvik Coromant SANC 6612452
Sandvik Coromant 6612452 CoroTurn 107 Turning Insert, ANSI Code: TCMT 2(1.5)1-UF 4315, TCMT Insert, Material Grade: K, P, 2(1.5)1 Insert, Triangular Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide
Invoice description:
Tcmt 2(1.5)1-uf 4315 Loc 10066187
In stock
(8)

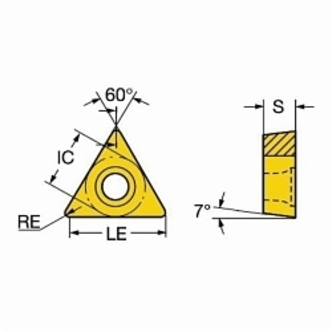

Sandvik Coromant Turning Insert, Series: CoroTurn 107, TCMT Insert, 2(1.5)1 Insert, Triangular, 2 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.094 in Thickness, 11 Seat, Positive Rake, UF Chipbreaker, 0.016 in Corner Radius, 0.1102 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: TCMT 2(1.5)1-UF 4315, ISO Code: TCMT 11 02 04-UF 4315, 60 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Features
- When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
- Wiper geometries available for high feeds and high quality surface finish
Specifications
ApplicationFinishing Applications
ANSI CodeTCMT 2(1.5)1-UF 4315
ChipbreakerUF
Corner Radius0.016 in
Cutting DirectionNeutral
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter0.1102 in
Included Angle60 deg
Inscribed Circle1/4 in
Insert Size2(1.5)1
Insert StyleTCMT
ISO CodeTCMT 11 02 04-UF 4315
Manufacturers Grade4315
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut2 mm
RakePositive
Relief Angle7 deg
Seat Size11
SeriesCoroTurn 107
ShapeTriangular
Thickness0.094 in
Additional Information
Country of OriginIN
