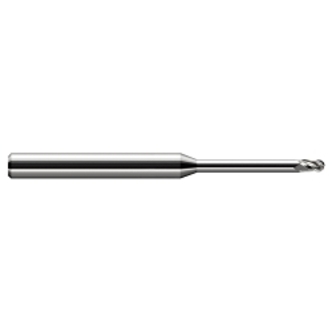

Harvey Tool HARV 966050
Harvey Tool 966050 Center Cut Stub Length Miniature End Mill, 0.05 in Dia Cutter, 0.075 in Length of Cut, (3) Flutes, 1/8 in Dia Shank, 2-1/2 in OAL, Uncoated
Invoice description:
Bem .05x.075x1/8x2-1/2 3fl Un
Manufacturer PN: 966050
Factory Order
--Price Unavailable--
Harvey Tool, 966050, Miniature End Mill, Center Cut Stub Length, 0.05 in Diameter Cutter, 2-1/2 in Overall Length, 0.075 in Length of Cut, 3 Flutes, Upcut Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, Solid Carbide, Uncoated
Features
- Long length design for deep cavities, up to 8 in overall length
- Stub flute for maximum rigidity
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
- Overall Reach 0.5000 in (1/2)
- Reach Multiple (10x)
- Profile Ball
Specifications
Cutter Diameter0.05 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeUpcut
Helix Angle30 deg
Length of Cut0.075 in
MaterialSolid Carbide
Number of Flutes3
Overall Length2-1/2 in
Shank Diameter1/8 in
Shank TypeCylindrical
TypeCenter Cut Stub Length
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
Sds
