Harvey Tool HARVEY 971916-C3

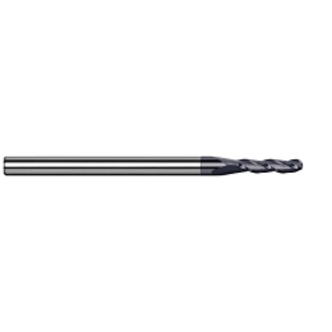

Harvey Tool 971916-C3 Variable Helix End Mill, 0.25 in Dia Cutter, 3/4 in Length of Cut, (4) Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, AlTiN
Invoice description:
1/4 X 1/4 X 3/4 X 2.5" Flt Carb Coated Ball
Manufacturer PN: 971916-C3
$80.20 EA
Factory OrderEstimated to ship in 7 days
Harvey Tool, 971916-C3, Variable Helix End Mill, 0.25 in Diameter Cutter, 2-1/2 in Overall Length, 3/4 in Length of Cut, 4 Flutes, Upcut Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 37 deg Helix Angle, Cylindrical Shank, 1.75 in Shank Length, Solid Carbide, AlTiN
Features
- Variable helix design (approx. 37) reduces chatter and harmonics and increases material removal rates
- Coating improves lubricity and heat resistance
- H6 shank tolerance for high precision tool holders
- Applicable Materials are Cast Iron, Steel, Stainless Steel
- Profile Ball
Specifications
ApplicationOptimized for readily machinable medium alloy steels, stainless steels, and tool steels, this Harvey Tool fully stocked offering features a variable helix design, which works to reduce chatter and harmonics while increasing material removal rates (MRR)
Cutter Diameter0.25 in
Cutting DirectionRight Hand
FinishAlTiN
Flute TypeUpcut
Helix Angle37 deg
Length of Cut3/4 in
MaterialSolid Carbide
Number of Flutes4
Overall Length2-1/2 in
Shank Diameter1/4 in
Shank Length1.75 in
Shank TypeCylindrical
TypeCenter Cut Variable Helix
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
