Sandvik Coromant SANC 7859251

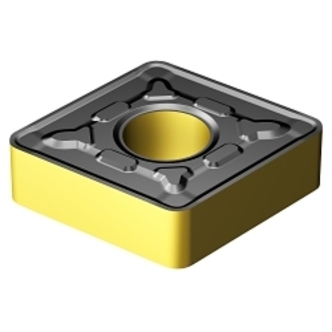

Sandvik Coromant 7859251 T-Max P Turning Insert, ANSI Code: CNMG 543-PR 4415, CNMG Insert, 543 Insert, Diamond Shape, Left/Right Hand Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4415
Invoice description:
Cnmg 16 06 12-pr 4415 T-max P Turning Inse
In stock
(5)
Sandvik Coromant Turning Insert, Series: T-Max P, CNMG Insert, 543 Insert, Diamond Shape, 8 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 0.587398 in Length, Double-Sided PR Chipbreaker, 0.046874 in Corner Radius, >50 mm Diameter Hole, Manufacturers Grade: 4415, ANSI Code: CNMG 543-PR 4415, ISO Code: CNMG 16 06 12-PR 4415, 80 deg Included Angle, 0 deg Relief Angle, Left/Right Hand Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, For Use On: Cast Iron and Steel
Features
- Geometries and grades for all application areas
- Insert grades also in advanced cutting materials PCD, CBN and ceramic
- Inserts dedicated for precision coolant
- Roughing to finishing operation
- 1 to 8 mm depth of cut for cast iron and steel
- Four cutting edges
- False wiper edge property
Specifications
ApplicationTurning and General Applications
ANSI CodeCNMG 543-PR 4415
ChipbreakerDouble-Sided PR
Corner Radius0.046874 in
Cutting DirectionLeft/Right Hand
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter>50 mm
Included Angle80 deg
Inscribed Circle5/8 in
Insert Size543
Insert StyleCNMG
ISO CodeCNMG 16 06 12-PR 4415
Length0.587398 in
Manufacturers Grade4415
MaterialCarbide
Maximum Depth of Cut8 mm
Relief Angle0 deg
SeriesT-Max P
ShapeDiamond
Thickness1/4 in
Additional Information
Standards/ApprovalPROP65: This product contains Carbide chemicals kn
Country of OriginUS
