GARR GARR 50857

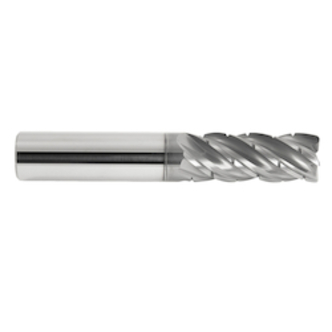

GARR 50857 V5C Center Cutting Chip Splitter High Performance Corner Radius End Mill, 3/4 in Dia Cutter, 0.03 in Corner Radius, 2-1/2 in Length of Cut, 5 Flutes, 3/4 in Dia Shank, 5 in OAL, AlCrN Coated
Invoice description:
Em 3/4x2-1/2x3/4x5 .03r 5fl Crb Alcrn
Factory Order
GARR Corner Radius End Mill, Center Cutting Chip Splitter High Performance, Series: V5C, 3/4 in Diameter Cutter, 0.03 in Corner Radius, 5 in Overall Length, 2-1/2 in Length of Cut, 5 Flutes, Spiral/Staggered Flute, 3/4 in Shank Diameter, 35 deg Helix Angle, Plain Shank, Submicron Grain Solid Carbide, AlCrN Coated
Features
- Chip splitter to help break long chips
- Staggered flutes to control harmonics
- Variable flute design helps with chip evacuation in slots and pockets
- PCT (Polish Carbide Treatment) enhances tool life
- +/-0.001 in corner radius tolerance
- For titanium, inconel and stainless steel
Specifications
ApplicationTrochoidal Milling Applications
Corner Radius0.03 in
Cutter Diameter3/4 in
FinishAlCrN Coated
Flute TypeSpiral/Staggered
Helix Angle35 deg
Length of Cut2-1/2 in
MaterialSubmicron Grain Solid Carbide
Number of Flutes5
Overall Length5 in
SeriesV5C
Shank Diameter3/4 in
Shank TypePlain
TypeCenter Cutting Chip Splitter High Performance
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer
Country of OriginUS
