GARR GARR 20190

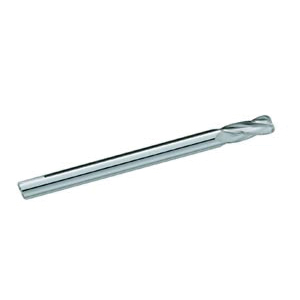

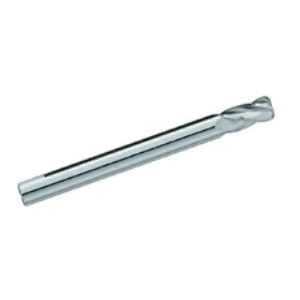

GARR 20190 630R Center Cutting Extra Length Single End Corner Radius End Mill, 3/16 in Dia Cutter, 0.045 in Corner Radius, 1 in Length of Cut, 4 Flutes, 3/16 in Dia Shank, 3 in OAL, Uncoated

Invoice description: Em 3/16x1locx3/16x3 Cr0.045 4fl N/c Xl

UNSPSC: 27112803
Manufacturer PN: 20190
$33.40 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR Corner Radius End Mill, Center Cutting Extra Length Single End, Series: 630R, 3/16 in Diameter Cutter, 0.045 in Corner Radius, 3 in Overall Length, 1 in Length of Cut, 4 Flutes, Spiral Flute, 3/16 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Round Shank, Submicron Grain Solid Carbide, Uncoated

  • Features

  • Extended reach
  • For stronger corners and part radius
  • Can be modified with a neck
  • Extremely versatile

Specifications

Corner Radius0.045 in
Cutter Diameter3/16 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut1 in
MaterialSubmicron Grain Solid Carbide
Number of Flutes4
Overall Length3 in
Series630R
Shank Diameter3/16 in
Shank TypeRound
TypeCenter Cutting Extra Length Single End

Additional Information

Country of OriginUS
