Sandvik Coromant SANC 8019558

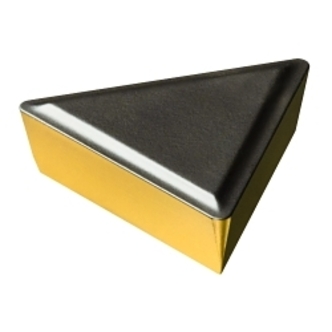

Sandvik Coromant 8019558 T-Max S 3-Cutting Edge Turning Insert, ANSI Code: TPMR 432 4425, TPMR Insert, Material Grade: K, P, 2204 Insert, Triangle Shape, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4425
Invoice description:
Ins Tpmr 432 4425
Factory Order
Sandvik Coromant Turning Insert, 3-Cutting Edge, Series: T-Max S, TPMR Insert, 2204 Insert, Triangle Shape, 1/2 in Inscribed Circle, 3/16 in Thickness, 0.8345 in Length, 53 Chipbreaker, 0.0312 in Corner Radius, Manufacturers Grade: 4425, ANSI Code: TPMR 432 4425, ISO Code: TPMR 22 04 08 4425, 60 deg Included Angle, 11 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Specifications
ApplicationFor longitudinal turning, face turning, profiling and roughing to finishing
ANSI CodeTPMR 432 4425
Chipbreaker53
Corner Radius0.0312 in
Cutting DirectionNeutral
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnCast Iron and Steel
Included Angle60 deg
Inscribed Circle1/2 in
Insert Size2204
Insert StyleTPMR
ISO CodeTPMR 22 04 08 4425
Length0.8345 in
Manufacturers Grade4425
MaterialCarbide
Material GradeK, P
Relief Angle11 deg
SeriesT-Max S
ShapeTriangle
Thickness3/16 in
Type3-Cutting Edge
Additional Information
Standards/ApprovalPROP65: This product contains Carbide chemicals kn
Country of OriginIN
