Harvey Tool HARV 53347-C6

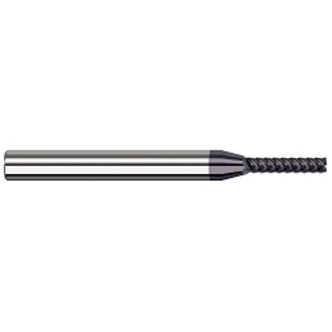

Harvey Tool 53347-C6 Variable Helix End Mill, 0.047 in Dia Cutter, 1/4 in Length of Cut, (5) Flutes, 1/8 in Dia Shank, 2-1/2 in OAL, AlTiN Nano
Invoice description:
Em 3/64x1/4x1/8x2-1/2 Sq 5fl Altin Nano
Manufacturer PN: 53347-C6
$91.24 EA
Factory OrderEstimated to ship in 7 days
Harvey Tool, 53347-C6, Variable Helix End Mill, 0.047 in Diameter Cutter, 2-1/2 in Overall Length, 1/4 in Length of Cut, 5 Flutes, Helical Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 44 deg Helix Angle, Cylindrical Shank, Solid Carbide, AlTiN Nano
Features
- Multi-flute, high helix (approx. 44), coated design improves finishing in carbon steels, 300 and 400 stainless steels and machinable tool steels
- Nano coating offers superior hardness and heat resistance
- H6 shank tolerance for high precision tool holders
- End cutting (not center cutting)
- Applicable Materials are Cast Iron, Steel, Stainless Steel
- Profile Square
Specifications
ApplicationFor used in light duty roughing and profiling applications
Cutter Diameter0.047 in
Cutting DirectionRight Hand
FinishAlTiN Nano
Flute TypeHelical
Helix Angle44 deg
Length of Cut1/4 in
MaterialSolid Carbide
Number of Flutes5
Overall Length2-1/2 in
Shank Diameter1/8 in
Shank TypeCylindrical
TypeCenter Cut Variable Helix
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
