Harvey Tool HARV 34710

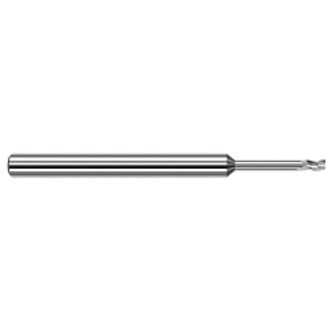

Harvey Tool 34710 Center Cut Stub Length Miniature End Mill, 0.1562 in Dia Cutter, 15/64 in Length of Cut, (3) Flutes, 3/16 in Dia Shank, 3 in OAL, Uncoated
Invoice description:
Em 5/32x15/64x1-1/4lbs 3fl Em 5/32x15/64x1-1/4lbs 3fl
Manufacturer PN: 34710
$70.00 EA
Factory OrderEstimated to ship in 7 days
Harvey Tool, 34710, Miniature End Mill, Center Cut Stub Length, 0.1562 in Diameter Cutter, 3 in Overall Length, 15/64 in Length of Cut, 3 Flutes, Helical Flute, 3/16 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, Solid Carbide, Uncoated
Features
- Long length design for deep cavities, up to 10 in overall length
- Stub flute for maximum rigidity
- Reduced neck diameter to avoid heeling
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
- Overall Reach 1.2500 in (1-1/4)
- Reach Multiple (8x)
- Profile Square
Specifications
Cutter Diameter0.1562 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeHelical
Helix Angle30 deg
Length of Cut15/64 in
MaterialSolid Carbide
Number of Flutes3
Overall Length3 in
Shank Diameter3/16 in
Shank TypeCylindrical
TypeCenter Cut Stub Length
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
