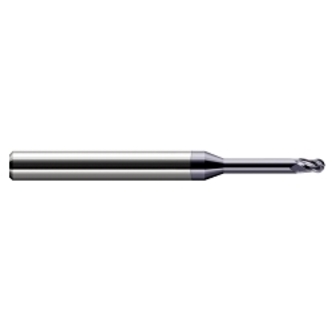

Harvey Tool HARV 868231-C3
Harvey Tool 868231-C3 Center Cut Stub Length Miniature End Mill, 0.031 in Dia Cutter, 3/64 in Length of Cut, (3) Flutes, 1/8 in Dia Shank, 2-1/2 in OAL, AlTiN
Invoice description:
Bem 1/32x3/64x1/8x2-1/2 3fl Altin 7/32 Reach Xl
Manufacturer PN: 868231-C3
$85.14 EA
Factory OrderEstimated to ship in 7 days
Harvey Tool, 868231-C3, Miniature End Mill, Center Cut Stub Length, 0.031 in Diameter Cutter, 2-1/2 in Overall Length, 3/64 in Length of Cut, 3 Flutes, Upcut Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, Solid Carbide, AlTiN
Features
- Long length design for deep cavities, up to 8 in overall length
- Stub flute for maximum rigidity
- Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
- Overall Reach 0.2180 in (7/32)
- Reach Multiple (7x)
- Profile Ball
Specifications
Cutter Diameter0.031 in
Cutting DirectionRight Hand
FinishAlTiN
Flute TypeUpcut
Helix Angle30 deg
Length of Cut3/64 in
MaterialSolid Carbide
Number of Flutes3
Overall Length2-1/2 in
Shank Diameter1/8 in
Shank TypeCylindrical
TypeCenter Cut Stub Length
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
