Sandvik Coromant SANC 5755487

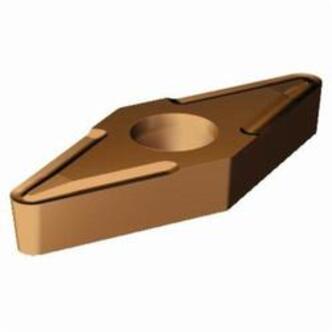

Sandvik Coromant 5755487 CoroTurn 107 1-Sided Basic Shape Turning Insert, ANSI Code: VBMT 2(1.5)1-UF 1125, VBMT Insert, Material Grade: M, N, P, S, 2(1.5)1 Insert, Diamond Shape, 11 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturers Grade: 1125
Invoice description:
Insert Vbmt 2(1.5)1-uf 1125
Factory Order
Sandvik Coromant Turning Insert, 1-Sided Basic Shape, Series: CoroTurn 107, VBMT Insert, 2(1.5)1 Insert, Diamond, 1.5 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.094 in Thickness, 0.4358 in Length, 11 Seat, Positive Rake, UF Chipbreaker, 0.016 in Corner Radius, 0.1102 in Hole Dia, Manufacturers Grade: 1125, ANSI Code: VBMT 2(1.5)1-UF 1125, ISO Code: VBMT 11 02 04-UF 1125, 35 deg Included Angle, 5 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+AlCr2O3 Coated, Material Grade: M, N, P, S, For Use On: Non-Ferrous Metals, Heat Resistant Super Alloys, Stainless Steel and Steel
Features
- Unobstructed chip flow
- Excellent chip control
- Exceptional surface finish
- Ground, super sharp insert offer for exceptional surface finish
- Holders with conventional and precision coolant design
Specifications
ApplicationFinishing Applications
ANSI CodeVBMT 2(1.5)1-UF 1125
ChipbreakerUF
Corner Radius0.016 in
Cutting DirectionNeutral
FinishPVD-TiAlN+AlCr2O3 Coated
For Use OnNon-Ferrous Metals, Heat Resistant Super Alloys, Stainless Steel and Steel
Hole Diameter0.1102 in
Included Angle35 deg
Inscribed Circle1/4 in
Insert Size2(1.5)1
Insert StyleVBMT
ISO CodeVBMT 11 02 04-UF 1125
Length0.4358 in
Manufacturers Grade1125
MaterialCarbide
Material GradeM, N, P, S
Maximum Depth of Cut1.5 mm
RakePositive
Relief Angle5 deg
Seat Size11
SeriesCoroTurn 107
ShapeDiamond
Thickness0.094 in
Type1-Sided Basic Shape
Additional Information
Country of OriginSE
