Sandvik Coromant SANC 5757950

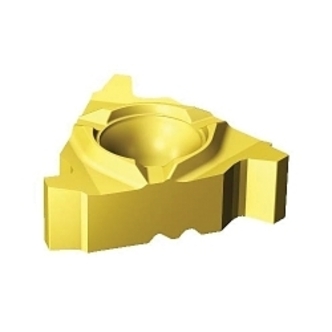

Sandvik Coromant 5757950 CoroThread 266 Threading Insert, ANSI Code: 266RL-22AC01F040E 1020, 266RL Insert, Triangular Shape, 4 TPI, Internal Thread, Acme Thread, Right Hand Cutting, Manufacturers Grade: 1020, Material Grade: H, K, M, N, P, S
Invoice description:
Ins 266rl-22ac01f040e 1020
Factory Order
Sandvik Coromant Threading Insert, Series: CoroThread 266, 266RL Insert, 22 Insert, Triangular Shape, Internal Thread, Acme Thread Standard, 4 Threads per Inch, 1/2 in Inscribed Circle, 0.219 in Thickness, ANSI Code: 266RL-22AC01F040E 1020, ISO Code: 266RL-22AC01F040E 1020, F Chipbreaker, Negative Rake, 60 deg Included Angle, Manufacturers Grade: 1020, Right Hand Cutting Direction, Carbide, PVD-TiN Coated, Material Grade: H, K, M, N, P, S
Specifications
ApplicationFor thread turning
ANSI Code266RL-22AC01F040E 1020
ChipbreakerF
Cutting DirectionRight Hand
FinishPVD-TiN Coated
Included Angle60 deg
Inscribed Circle1/2 in
Insert Size22
Insert Style266RL
ISO Code266RL-22AC01F040E 1020
Manufacturers Grade1020
MaterialCarbide
Material GradeH, K, M, N, P, S
RakeNegative
SeriesCoroThread 266
ShapeTriangular
Thickness0.219 in
Thread StandardACME
Thread TypeInternal
Threads per Inch4
Additional Information
Standards/ApprovalANSI B1.5-1988
Country of OriginSE
