Sandvik Coromant SANC 5757959

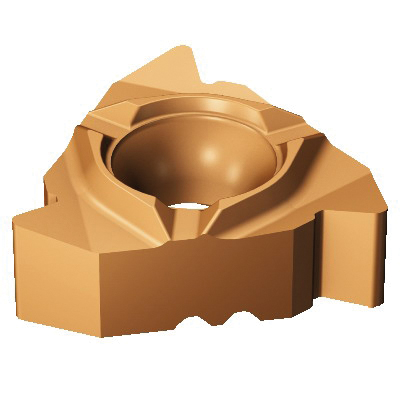

Sandvik Coromant 5757959 CoroThread 266 Threading Insert, ANSI Code: 266RL-16UN01A200M 1125, 266RL Insert, Triangular Shape, 20 TPI, Internal Thread, UN Thread, Right Hand Cutting, Manufacturers Grade: 1125, Material Grade: H, K, M, N, P, S
Invoice description:
Ins 266rl-16un01a200m 1125
In stock
(10)
Sandvik Coromant Threading Insert, Series: CoroThread 266, 266RL Insert, 16 Insert, Triangular, Internal, UN, 20, 3/8 in Inscribed Circle, 0.156 in Thickness, ANSI Code: 266RL-16UN01A200M 1125, ISO Code: 266RL-16UN01A200M 1125, A Chipbreaker, Negative Rake, 60 deg Included Angle, Manufacturers Grade: 1125, Right Hand Cutting, Carbide, PVD-TiCrAlN+TiAlN Coated, Material Grade: H, K, M, N, P, S
Specifications
ApplicationFor thread turning
ANSI Code266RL-16UN01A200M 1125
ChipbreakerA
Cutting DirectionRight Hand
FinishPVD-TiCrAlN+TiAlN Coated

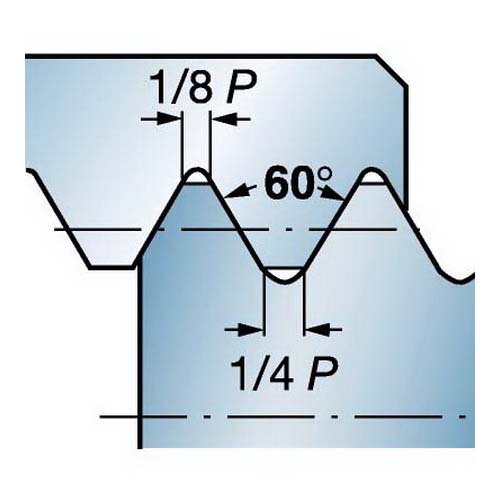

Included Angle60 deg

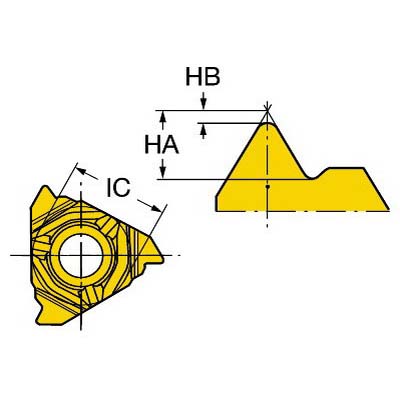

Inscribed Circle3/8 in
Insert Size16
Insert Style266RL
ISO Code266RL-16UN01A200M 1125
Manufacturers Grade1125
MaterialCarbide
Material GradeH, K, M, N, P, S
RakeNegative
SeriesCoroThread 266
ShapeTriangular
Thickness0.156 in
Thread StandardUN
Thread TypeInternal
Threads per Inch20
Additional Information
Standards/ApprovalISO 5864-1978
Country of OriginSE
Sds
