Harvey Tool HARV 17970

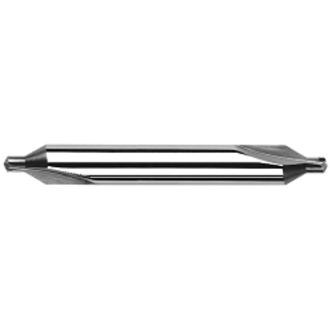

Harvey Tool 17970 Combined Drill & Countersink, 3/16 Drill - Fraction, 4.7625 mm Drill - Metric, 0.1875 in Drill - Decimal Inch, 90 deg Included Angle, 118 deg Point Angle, Uncoated
Invoice description:
Center Drill N5 2fl Crb Un
Manufacturer PN: 17970
$105.28 EA
Factory OrderEstimated to ship in 7 days
Harvey Tool, 17970, Combined Drill & Countersink, 3/16 Drill - Fraction, 4.7625 mm Drill - Metric, 0.1875 in Drill - Decimal Inch, 2-3/4 in Overall Length, 2 Flutes, Helical Flute, 0.187 in Flute Length, 11.11 mm Shank, Cylindrical Shank, 118 deg Point, Plain Point, 90 deg Included Angle, Right Hand Cutting Direction, Solid Carbide Cutting Edge, For Screw Size: 5, Uncoated, Applicable Materials: Aluminum/Cast Iron/Steel/Stainless Steel/Wood/Composites
Features
- Double-ended
- Drill Diameter 0.1875 in (3/16)
Specifications
Applicable MaterialsAluminum/Cast Iron/Steel/Stainless Steel/Wood/Composites
Cutting DirectionRight Hand
Cutting Edge MaterialSolid Carbide
Drill Size - Decimal Inch0.1875 in
Drill Size - Fraction3/16
Drill Size - Metric4.7625 mm
FinishUncoated
Flute Length0.187 in
Flute TypeHelical
For Screw Size5
Included Angle90 deg
MaterialSolid Carbide
Number of Flutes2
Overall Length2-3/4 in
Point Angle118 deg
Point TypePlain
Shank Size11.11 mm
Shank TypeCylindrical
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
