Sandvik Coromant SANC 5755939

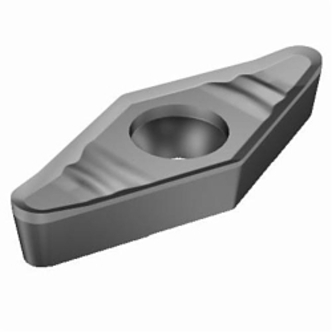

Sandvik Coromant 5755939 CoroTurn 107 1-Sided Basic Shape Turning Insert, ANSI Code: VCGX 2(1.5)0-AL H10, VCGX Insert, Material Grade: N, S, 2(1.5)0 Insert, Rhombic Shape, 11 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturers Grade: H10
Invoice description:
Ins Vcgx 2(1.5)0-al H10
Factory Order
Sandvik Coromant Turning Insert, 1-Sided Basic Shape, Series: CoroTurn 107, VCGX Insert, 2(1.5)0 Insert, Rhombic, 0.118 in Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.094 in Thickness, 0.4358 in Length, 11 Seat, Positive Rake, AL Chipbreaker, 0.008 in Corner Radius, 0.1102 in Hole Dia, Manufacturers Grade: H10, ANSI Code: VCGX 2(1.5)0-AL H10, ISO Code: VCGX 11 02 02-AL H10, 35 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: N, S, For Use On: Heat Resistant Super Alloys and Non-Ferrous Metals
Features
- Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Wiper geometries available for high feeds and high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
Specifications
ApplicationMedium Applications
ANSI CodeVCGX 2(1.5)0-AL H10
ChipbreakerAL
Corner Radius0.008 in
Cutting DirectionNeutral
FinishUncoated
For Use OnHeat Resistant Super Alloys and Non-Ferrous Metals
Hole Diameter0.1102 in
Included Angle35 deg
Inscribed Circle1/4 in
Insert Size2(1.5)0
Insert StyleVCGX
ISO CodeVCGX 11 02 02-AL H10
Length0.4358 in
Manufacturers GradeH10
MaterialCarbide
Material GradeN, S
Maximum Depth of Cut0.118 in
RakePositive
Relief Angle7 deg
Seat Size11
SeriesCoroTurn 107
ShapeRhombic
Thickness0.094 in
Type1-Sided Basic Shape
Additional Information
Country of OriginJP
