RIDGID RID 26092

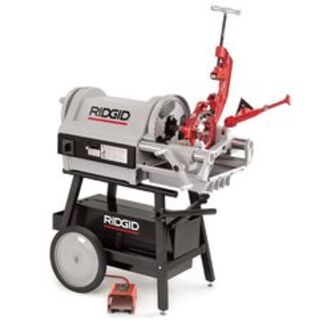

RIDGID Threading Machine Kit, Kit, 1/2 to 4 in, 36/12 rpm, 1.5 hp, 120 VAC, 15 A, 1/4 to 2 in Bolt, 18-1/2 in Overall Length, 72-1/2 in Overall Width, Reversing: Yes, Polyethylene Housing, Heavy Duty Rotary Forward/Off/Reverse/Integral Foot Switch Control

• Features

• The Model: 1224 threads a wide range of pipe including black, galvanized and plastic coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C
• An induction motor helps minimize noise
• A special capacitor-start/capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced
• 1/4 to 2 in universal die head, 2-1/2 to 4 in receding die head allows cutting of tapered or straight NPT/NPSM or BSPT connection/BSPP threads
• Constant and proper lubrication of dies and workpiece with through head oiling
• Two-speed gear box with a 3:1 ratio
• Hammer-type chuck with replaceable rocker action jaw inserts
• Cam action rear centering device
• Self-priming, gerotor type, automatic-reversing, constant flow oiling pump
• Through die head oiling

Specifications

Additional Information

Documents

• Warranty Information

• Line Drawing

• Owners/user Manual
