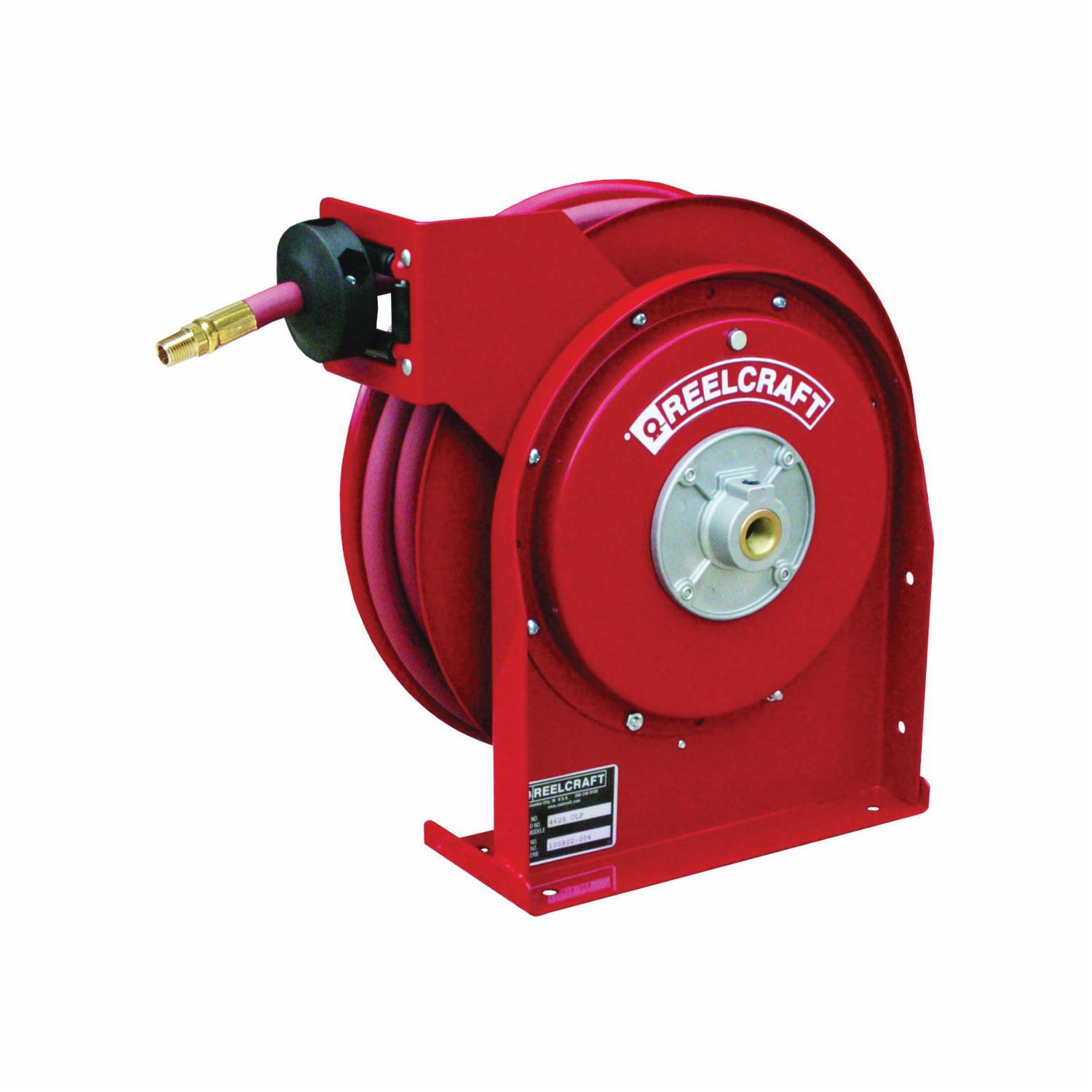

Reelcraft REEL 4625-OLP

Reelcraft Hose Reel, Low Pressure Premium Duty, Series: 4000, 3/8 in ID X 3/5 in OD x 15 ft L Hose, 300 psi Pressure, 12-3/8 in Reel Diameter, 2-1/2 in Reel Width, Retractable Spring Drive, Ceiling/Floor/Wall Mounting, Steel/Zinc Dichromate Swivel, Buna-N Seal, 12-7/8 in H x 12-3/8 in W x 5-5/8 in D, Reinforced Stainless Steel, Powder Coated, Red, Domestic

• Features

• Reinforced steel - the robotically welded steel base offers maximum strength and consistent quality
• All steel components are powder coated for maximum corrosion resistance
• Full flow stress free swivel design - the full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
• The hose is plumbed into the base to eliminate the risk of undue stress on the swivel
• Long life drive spring - declutching arbor virtually eliminates possibility of spring damage due to reverse winding
• Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
• Quite speed latch - the latch cam is designed for reliable quiet operation
• 1/4 in MNPT hose outlet
• 3/8 in FNPT reel inlet
• 150 deg F Max temperature

Specifications

Additional Information

Documents

• Owners/user Manual

• Catalog

• Catalog
