Campbell CAM 5200434

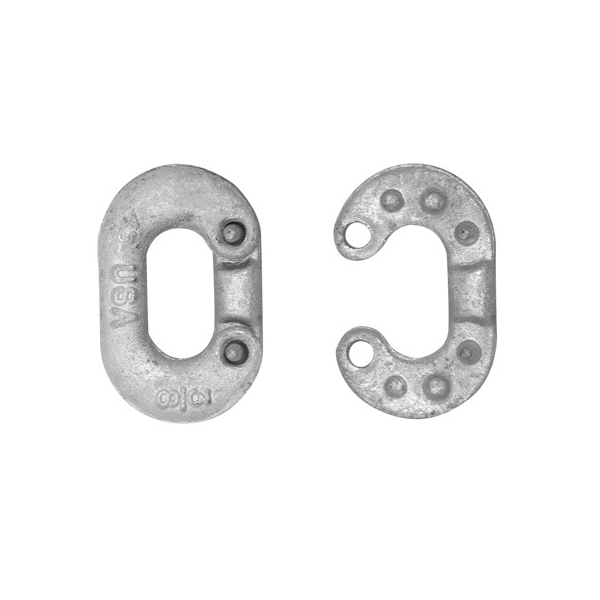

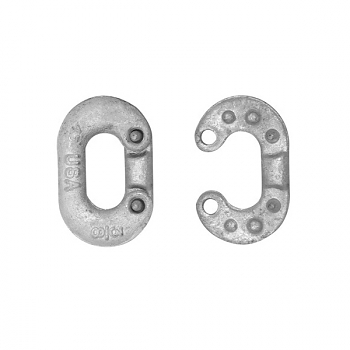

Campbell 5200434 Type 2 Connecting Link, 1/4 in Trade, 1400 lb Load, Forged Carbon Steel, Galvanized/Zinc Plated

Invoice description: Link Connecting Chain 1/ 4" 752g (10pr/bx) M614g

UPC: 020418074684

UNSPSC: 24101600

Manufacturer PN: 5200434

^$11.76 PR

Factory Order
Estimated to ship in 30 days

Campbell Connecting Link, Type 2, 1/4 in, 1400 lb, Forged Carbon Steel, Galvanized/Zinc Plated

Features
Drop-forged heat treated carbon or alloy steel
Standard finish is self-colored or galvanized to meet ASTM A-153 specifications
4:1 design factor
For proper closure, peen the prongs to fill the hole of the mating half as much as possible
Make sure the connecting link used is the same size as the components being joined e.g. a 3/8 in connecting link is used with 3/8 in chain
Any assembly made using connecting links should be rated at the working load limit of the weakest component
The working load limit of connecting links is based on a straight line pull, any side or shock loading will significantly reduce the actual working load limit
Never re-use a connecting link
Do not exceed the working load limit
Peen hammer locking
