Sandvik Coromant SANC 6199984

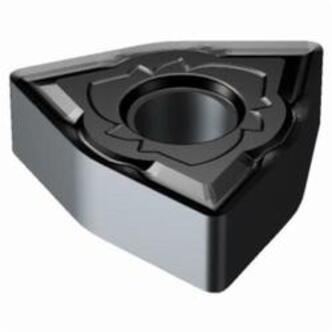

Sandvik Coromant 6199984 T-Max P Turning Insert, ANSI Code: WNMG 331-SM 1105, WNMG Insert, Material Grade: M, S, 331 Insert, Trigon Shape, 06 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium
Invoice description:
Ins Wnmg 331-sm 1105
Factory Order
Sandvik Coromant Turning Insert, Series: T-Max P, WNMG Insert, 331 Insert, Trigon, 2.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.187 in Thickness, 06 Seat, Negative Rake, SM Chipbreaker, 0.016 in Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: 1105, ANSI Code: WNMG 331-SM 1105, ISO Code: WNMG 06 04 04-SM 1105, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN2 Coated, Material Grade: M, S, For Use On: Stainless Steel, Heat Resistant Super Alloys and Titanium
Features
- Excellent surface finish
- Reliable and secure machining, even in roughing applications
- Possibility to optimize by using damped Silent Tools
Specifications
ApplicationMedium Applications
ANSI CodeWNMG 331-SM 1105
ChipbreakerSM
Corner Radius0.016 in
Cutting DirectionNeutral
FinishPVD-TiAlN2 Coated
For Use OnStainless Steel, Heat Resistant Super Alloys and Titanium
Hole Diameter0.15 in
Included Angle80 deg
Inscribed Circle3/8 in
Insert Size331
Insert StyleWNMG
ISO CodeWNMG 06 04 04-SM 1105
Manufacturers Grade1105
MaterialCarbide
Material GradeM, S
Maximum Depth of Cut2.5 mm
RakeNegative
Relief Angle0 deg
Seat Size06
SeriesT-Max P
ShapeTrigon
Thickness0.187 in
Additional Information
Country of OriginSE
