Sandvik Coromant SANC 6198170

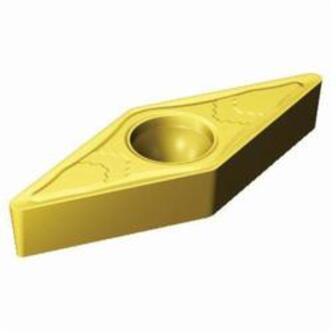

Sandvik Coromant 6198170 CoroTurn 107 1-Sided Basic Shape Turning Insert, ANSI Code: VBMT 332-MMC 2025, VBMT Insert, Material Grade: M, 332 Insert, Diamond Shape, 16 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel, Carbide
Invoice description:
Ins Vbmt 332-mmc 2025
Factory Order
Sandvik Coromant Turning Insert, 1-Sided Basic Shape, Series: CoroTurn 107, VBMT Insert, 332 Insert, Diamond, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.187 in Thickness, 0.6537 in Length, 16 Seat, Positive Rake, MMC Chipbreaker, 0.031 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 2025, ANSI Code: VBMT 332-MMC 2025, ISO Code: VBMT 16 04 08-MMC 2025, 35 deg Included Angle, 5 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, For Use On: Stainless Steel
Features
- Unobstructed chip flow
- Excellent chip control
- Exceptional surface finish
- Ground, super sharp insert offer for exceptional surface finish
- Holders with conventional and precision coolant design
Specifications
ApplicationMedium Duty Applications
ANSI CodeVBMT 332-MMC 2025
ChipbreakerMMC
Corner Radius0.031 in
Cutting DirectionNeutral
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel
Hole Diameter0.1732 in
Included Angle35 deg
Inscribed Circle3/8 in
Insert Size332
Insert StyleVBMT
ISO CodeVBMT 16 04 08-MMC 2025
Length0.6537 in
Manufacturers Grade2025
MaterialCarbide
Material GradeM
Maximum Depth of Cut3 mm
RakePositive
Relief Angle5 deg
Seat Size16
SeriesCoroTurn 107
ShapeDiamond
Thickness0.187 in
Type1-Sided Basic Shape
Additional Information
Country of OriginSE
