Sandvik Coromant SANC 5752834

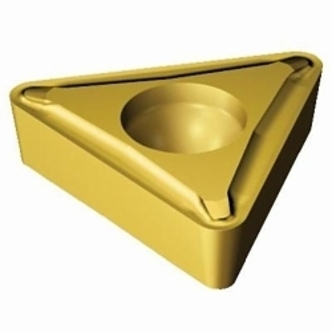

Sandvik Coromant 5752834 CoroTurn 107 Turning Insert, ANSI Code: TCMT 1.2(1.2)0-UF 235, TCMT Insert, Material Grade: M, P, 1.2(1.2)0 Insert, Triangular Shape, 06 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel and Steel, Carbide
Invoice description:
Int Tcmt1.2(1.2)0-uf 235
Factory Order
Sandvik Coromant Turning Insert, Series: CoroTurn 107, TCMT Insert, 1.2(1.2)0 Insert, Triangular, 1.5 mm Maximum Depth of Cut, 5/32 in Inscribed Circle, 0.078 in Thickness, 06 Seat, Positive Rake, UF Chipbreaker, 0.008 in Corner Radius, 0.0866 in Hole Dia, Manufacturers Grade: 235, ANSI Code: TCMT 1.2(1.2)0-UF 235, ISO Code: TCMT 06 T1 02-UF 235, 60 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
- Wiper geometries available for high feeds and high quality surface finish
Specifications
ApplicationFinishing Applications
ANSI CodeTCMT 1.2(1.2)0-UF 235
ChipbreakerUF
Corner Radius0.008 in
Cutting DirectionNeutral
FinishCVD-TiCN+TiN Coated
For Use OnStainless Steel and Steel
Hole Diameter0.0866 in
Included Angle60 deg
Inscribed Circle5/32 in
Insert Size1.2(1.2)0
Insert StyleTCMT
ISO CodeTCMT 06 T1 02-UF 235
Manufacturers Grade235
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut1.5 mm
RakePositive
Relief Angle7 deg
Seat Size06
SeriesCoroTurn 107
ShapeTriangular
Thickness0.078 in
Additional Information
Country of OriginJP
